P. 249

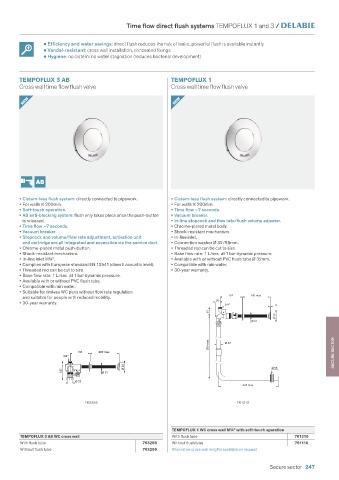

Time flow direct flush systems TEMPOFLUX 1 and 3 /


                     •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                     •  Vandal-resistant: cross wall installation, concealed fixings
                     •  Hygiene: no cistern: no water stagnation (reduces bacterial development)




            TEMPOFLUX 3 AB                                       TEMPOFLUX 1
            Cross wall time flow flush valve                       Cross wall time flow flush valve

             NEW                                                  NEW




















            • Cistern-less flush system: directly connected to pipework.  • Cistern-less flush system: directly connected to pipework.
            • For walls ≤ 200mm.                                 • For walls ≤ 200mm.
            • Soft-touch operation.                              • Time flow ~7 seconds.
            • AB anti-blocking system: flush only takes place once the push-button   • Vacuum breaker.
             is released.                                        • In-line stopcock and flow rate/flush volume adjuster.
            • Time flow ~7 seconds.                               • Chrome-plated metal body.
            • Vacuum breaker.                                    • Shock-resistant mechanism.
            • Stopcock and volume/flow rate adjustment, activation unit    • In-line inlet.
             and cartridge are all integrated and accessible via the service duct.  • Connection washer Ø 32/55mm.
            • Chrome-plated metal push-button.                   • Threaded rod can be cut to size.
            • Shock-resistant mechanism.                         • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
            • In-line inlet M¾".                                 • Available with or without PVC flush tube Ø 32mm.
            • Complies with European standard EN 12541 (class II acoustic level).  • Compatible with rain water.
            • Threaded rod can be cut to size.                   • 30-year warranty.
            • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
            • Available with or without PVC flush tube.
            • Compatible with rain water.
            • Suitable for rimless WC pans without flow rate regulation
             and suitable for people with reduced mobility.                           162    200 max
                                                                                 36
            • 30-year warranty.                                                     3/4"              4
                                                                              63
                                                                                                      Ø 50
                                                                                              Ø 21


                                                                              880 max  Ø 32

                                136     200 max                                                                           SECURE SECTOR
                           3/4"
                                                 Ø 50                                                Ø 55
                           147            Ø 21

                                Ø 32
                                                                                          435 max

                                   763256                                               761210




                                                                  TEMPOFLUX 1 WC cross wall M¾" with soft-touch operation
            TEMPOFLUX 3 AB WC cross wall                          With flush tube                             761210
            With flush tube                             763266     Without flush tube                          761110
            Without flush tube                          763256     Alternative cross wall lengths available on request
