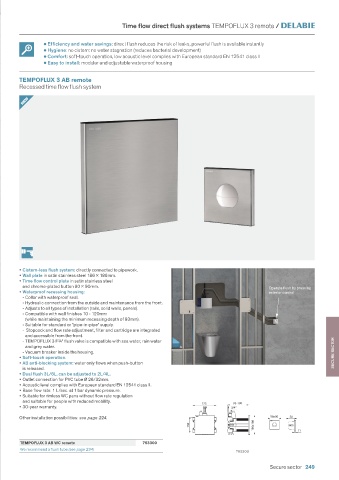

Page 251 - Water_Controls_for_Public-Commercial

Time flow direct flush systems TEMPOFLUX 3 remote /

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II
• Easy to install: modular and adjustable waterproof housing

TEMPOFLUX 3 AB remote
Recessed time flow flush system

NEW

• Cistern-less flush system: directly connected to pipework.
• Wall plate in satin stainless steel 186 186mm.
• Time flow control plate in satin stainless steel
and chrome-plated button 90 90mm. Operate flush by pressing
• Waterproof recessing housing: exterior control
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment, filter and cartridge are integrated
and accessible from the front.
- TEMPOFLUX 3 F¾" flush valve is compatible with sea water, rain water
and grey water.
- Vacuum breaker inside the housing. SECURE SECTOR
• Soft-touch operation.
• AB anti-blocking system: water only flows when push-button
is released.
• Dual flush 3L/6L, can be adjusted to 2L/4L.
• Outlet connection for PVC tube Ø 26/32mm.
• Acoustic level complies with European standard EN 12541 class II.
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Suitable for rimless WC pans without flow rate regulation
and suitable for people with reduced mobility.
225 93-190
• 30-year warranty. 3/4"
Other installation possibilities: see page 224. 90x90 50
186x186 11
150

TEMPOFLUX 3 AB WC remote 763300
We recommend a flush tube (see page 234)
763300
Secure sector 249
