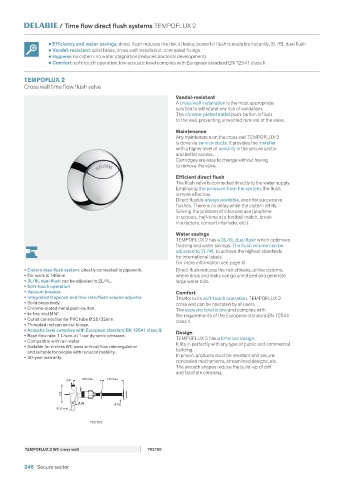

Page 248 - Water_Controls_for_Public-Commercial

/ Time flow direct flush systems TEMPOFLUX 2

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly, 3L/6L dual flush
• Vandal-resistant: solid brass, cross wall installation, concealed fixings
• Hygiene: no cistern: no water stagnation (reduces bacterial development)
• Comfort: soft-touch operation, low acoustic level complies with European standard EN 12541 class II

TEMPOFLUX 2
Cross wall time flow flush valve

Vandal-resistant
A cross wall installation is the most appropriate
solution to withstand any risk of vandalism.
The chrome-plated metal push-button is flush
to the wall, preventing unwanted removal of the valve.

Maintenance
Any maintenance on the cross wall TEMPOFLUX 2
is done via service ducts. It provides the installer
with a higher level of security in the secure sector
and better access.
Cartridges are easy to change without having
to remove the valve.

Efficient direct flush
The flush valve is connected directly to the water supply.
Employing the pressure from the system, the flush
is more effective.
Direct flush is always available, even for successive
flushes. There is no delay while the cistern refills.
Solving the problem of intensive use (playtime
in schools, half-time at a football match, break
in a factory, concert interlude, etc.).

Water savings
TEMPOFLUX 2 has a 3L/6L dual flush which optimises
flushing and water savings. The flush volume can be
adjusted to 2L/4L to achieve the highest standards
for international labels.
For more information see page 8.
• Cistern-less flush system: directly connected to pipework. Direct flush reduces the risk of leaks, unlike cisterns,
• For walls ≤ 140mm. where drips and leaks can go unnoticed and generate
• 3L/6L dual flush can be adjusted to 2L/4L. large water bills.
• Soft-touch operation.
• Vacuum breaker. Comfort
• Integrated stopcock and flow rate/flush volume adjuster. Thanks to its soft-touch operation, TEMPOFLUX 2
• Solid brass body. cross wall can be operated by all users.
• Chrome-plated metal push-button. The acoustic level is low and complies with
• In-line inlet M¾". the requirements of the European standard EN 12541
• Outlet connection for PVC tube Ø 26/32mm. class II.
• Threaded rod can be cut to size.
• Acoustic level complies with European standard EN 12541 class II. Design
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure. TEMPOFLUX 2 has a timeless design.
• Compatible with rain water.
• Suitable for rimless WC pans without flow rate regulation It fits in perfectly with any type of public and commercial
and suitable for people with reduced mobility. building.
• 30-year warranty. In prison, products must be resistant and secure:
concealed mechanisms, streamlined designs, etc.
The smooth shapes reduce the build-up of dirt
and facilitate cleaning.
208 min 140 max
3/4"
125

Ø 28 Ø 70
Ø 25 min

762150

TEMPOFLUX 2 WC cross wall 762150

246 Secure sector
