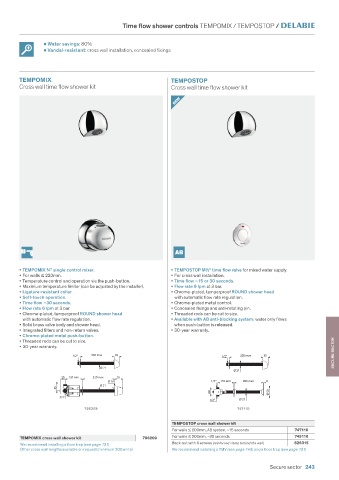

Page 245 - Water_Controls_for_Public-Commercial

Time flow shower controls TEMPOMIX / TEMPOSTOP /

• Water savings: 80%
• Vandal-resistant: cross wall installation, concealed fixings

TEMPOMIX TEMPOSTOP
Cross wall time flow shower kit Cross wall time flow shower kit

NEW

• TEMPOMIX ¾" single control mixer. • TEMPOSTOP M½" time flow valve for mixed water supply.
• For walls ≤ 220mm. • For cross wall installation.
• Temperature control and operation via the push-button. • Time flow ~15 or 30 seconds.
• Maximum temperature limiter (can be adjusted by the installer). • Flow rate 6 lpm at 3 bar.
• Ligature-resistant collar. • Chrome-plated, tamperproof ROUND shower head
• Soft-touch operation. with automatic flow rate regulation.
• Time flow ~30 seconds. • Chrome-plated metal control.
• Flow rate 6 lpm at 3 bar. • Concealed fixings and anti-rotating pin.
• Chrome-plated, tamperproof ROUND shower head • Threaded rods can be cut to size.
with automatic flow rate regulation. • Available with AB anti-blocking system: water only flows
• Solid brass valve body and shower head. when push-button is released.
• Integrated filters and non-return valves. • 30-year warranty.
• Chrome-plated metal push-button.
SECURE SECTOR
• Threaded rods can be cut to size.
• 30-year warranty.
1/2" 230 max 35 1/2" 230 max 35

Ø 21
Ø 21
30 120 min 220 max 55
Ø 70 1/2" 110 min 200 max 4
Ø 21
45
60 Ø 50
3/4"
1/2" Ø 21
796209 747110

TEMPOSTOP cross wall shower kit
For walls ≤ 200mm, AB system, ~15 seconds 747110
For walls ≤ 200mm, ~30 seconds 749110
TEMPOMIX cross wall shower kit 796209
We recommend installing a floor trap (see page 131) Back-nut with 3 screws (reinforced clamp behind the wall) 826315
Other cross wall lengths available on request (minimum 200 units) We recommend installing a TMV (see page 143) and a floor trap (see page 131)

Secure sector 243
