Page 101 - Accessibility-Hygienic-Accessories

Shower grab bars /

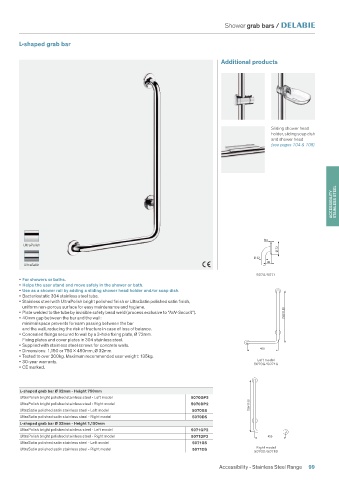

L-shaped grab bar

Additional products

Sliding shower head
holder, sliding soap dish
and shower head
(see pages 104 & 105)

ACCESSIBILITY STAINLESS STEEL

8,5
UltraPolish
Ø 72
Ø 32
40
UltraSatin
5070/5071
• For showers or baths.
• Helps the user stand and move safely in the shower or bath.
• Use as a shower rail by adding a sliding shower head holder and/or soap dish.
• Bacteriostatic 304 stainless steel tube.
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene.
• Plate welded to the tube by invisible safety bead weld (process exclusive to “ArN-Securit”). 750/1150
• 40mm gap between the bar and the wall:
minimal space prevents forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings secured to wall by a 3-hole fixing plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls.
450
• Dimensions: 1,150 or 750 450mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
Left model
• 30-year warranty. 5070G/5071G
• CE marked.

L-shaped grab bar Ø 32mm - Height 750mm
UltraPolish bright polished stainless steel - Left model 5070GP2
UltraPolish bright polished stainless steel - Right model 5070DP2 750/1150
UltraSatin polished satin stainless steel - Left model 5070GS
UltraSatin polished satin stainless steel - Right model 5070DS
L-shaped grab bar Ø 32mm - Height 1,150mm
UltraPolish bright polished stainless steel - Left model 5071GP2
UltraPolish bright polished stainless steel - Right model 5071DP2 450
UltraSatin polished satin stainless steel - Left model 5071GS
UltraSatin polished satin stainless steel - Right model 5071DS Right model
5070D/5071D
Accessibility - Stainless Steel Range 99
