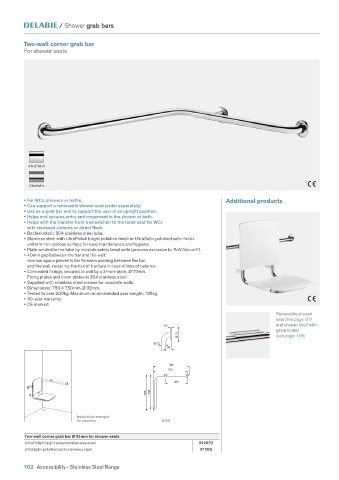

Page 104 - Accessibility-Hygienic-Accessories

/ Shower grab bars

Two-wall corner grab bar
For shower seats

UltraPolish

UltraSatin

• For WCs, showers or baths. Additional products
• Can support a removable shower seat (order separately).
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower or bath.
• Helps with the transfer from a wheelchair to the toilet seat for WCs
with recessed cisterns or direct flush.
• Bacteriostatic 304 stainless steel tube.
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene.
• Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
• 40mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls.
• Dimensions: 750 750mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked.
Removable shower
seat (see page 87)
8,5 and shower shelf with
glove holder
Ø 72 (see page 105)
Ø 32
40

786
750
480
786 750

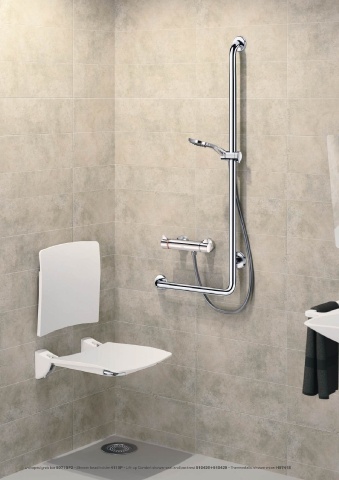

Installation example
for showers 5120

Two-wall corner grab bar Ø 32mm for shower seats
UltraPolish bright polished stainless steel 5120P2
UltraSatin polished satin stainless steel 5120S

102 Accessibility - Stainless Steel Range
