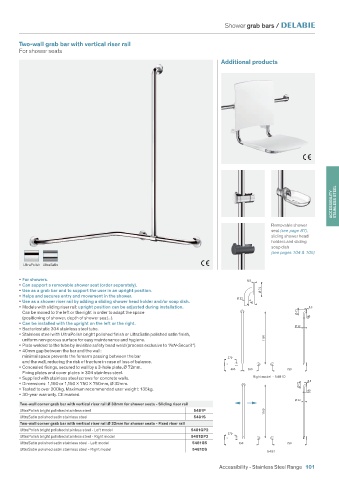

Page 103 - Accessibility-Hygienic-Accessories

Shower grab bars /

Two-wall grab bar with vertical riser rail
For shower seats

Additional products

ACCESSIBILITY STAINLESS STEEL

Removable shower
seat (see page 87),
sliding shower head
holders and sliding
soap dish
(see pages 104 & 105)
UltraPolish UltraSatin

• For showers. 8,5
• Can support a removable shower seat (order separately).
• Use as a grab bar and to support the user in an upright position. Ø 72
• Helps and secures entry and movement in the shower.
Ø 32
• Use as a shower riser rail by adding a sliding shower head holder and/or soap dish. 40
• Models with sliding riser rail: upright position can be adjusted during installation. 8,5
Can be moved to the left or the right in order to adapt the space Ø 72
(positioning of shower, depth of shower seat...). 40
• Can be installed with the upright on the left or the right.
• Bacteriostatic 304 stainless steel tube. Ø 32
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene. 1150
• Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
• 40mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar 270
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
400 350 750
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls. Right model - 5481D
• Dimensions: 1,160 or 1,150 750 750mm, Ø 32mm. Ø 72 8,5
• Tested to over 200kg. Maximum recommended user weight: 135kg. 40
• 30-year warranty. CE marked.
Ø 32
Two-wall corner grab bar with vertical riser rail Ø 32mm for shower seats - Sliding riser rail
UltraPolish bright polished stainless steel 5481P 1160
UltraSatin polished satin stainless steel 5481S
Two-wall corner grab bar with vertical riser rail Ø 32mm for shower seats - Fixed riser rail
UltraPolish bright polished stainless steel - Left model 5481GP2
270
UltraPolish bright polished stainless steel - Right model 5481DP2
UltraSatin polished satin stainless steel - Left model 5481GS 750 750
UltraSatin polished satin stainless steel - Right model 5481DS
5481
Accessibility - Stainless Steel Range 101
