Page 105 - Accessibility-Hygienic-Accessories

Shower grab bars /

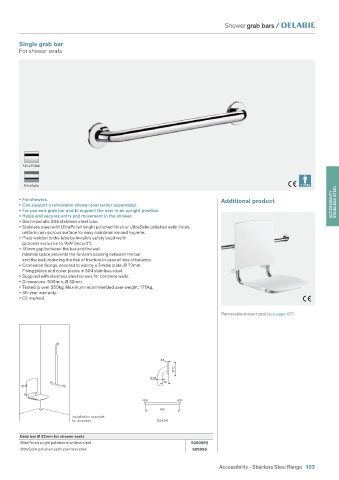

Single grab bar
For shower seats

UltraPolish

UltraSatin

• For showers. Additional product STAINLESS STEEL
• Can support a removable shower seat (order separately). ACCESSIBILITY
• For use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower.
• Bacteriostatic 304 stainless steel tube.
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene.
• Plate welded to the tube by invisible safety bead weld
(process exclusive to "ArN-Securit").
• 40mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls.
• Dimensions: 500mm, Ø 32mm.
• Tested to over 250kg. Maximum recommended user weight: 170kg.
• 30-year warranty.
• CE marked.

Removable shower seat (see page 87)

8,5
Ø 72
Ø 32
40

500
Installation example
for showers 50505

Grab bar Ø 32mm for shower seats
UltraPolish bright polished stainless steel 50505P2
UltraSatin polished satin stainless steel 50505S

Accessibility - Stainless Steel Range 103
