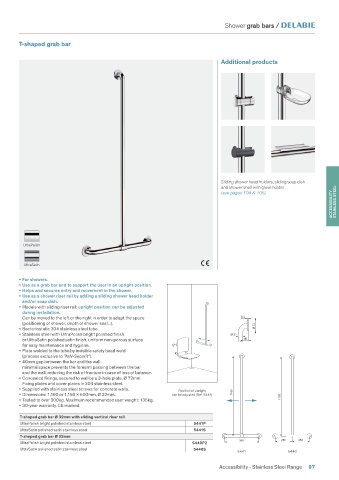

Page 99 - Accessibility-Hygienic-Accessories

Shower grab bars /

T-shaped grab bar

Additional products

Sliding shower head holders, sliding soap dish
and shower shelf with glove holder
ACCESSIBILITY STAINLESS STEEL
(see pages 104 & 105)

UltraPolish

UltraSatin

• For showers.
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower.
• Use as a shower riser rail by adding a sliding shower head holder
and/or soap dish.
• Models with sliding riser rail: upright position can be adjusted
during installation.
Can be moved to the left or the right in order to adapt the space 8,5
(positioning of shower, depth of shower seat...).
• Bacteriostatic 304 stainless steel tube. Ø 72
• Stainless steel with UltraPolish bright polished finish Ø 32
or UltraSatin polished satin finish, uniform non-porous surface 40
for easy maintenance and hygiene.
• Plate welded to the tube by invisible safety bead weld
(process exclusive to "ArN-Securit").
• 40mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls. Position of upright
• Dimensions: 1,160 or 1,150 500mm, Ø 32mm. can be adjusted (Ref. 5441) 1160 1150
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty. CE marked.

T-shaped grab bar Ø 32mm with sliding vertical riser rail
UltraPolish bright polished stainless steel 5441P
UltraSatin polished satin stainless steel 5441S
T-shaped grab bar Ø 32mm
500 250 250
UltraPolish bright polished stainless steel 5440P2
UltraSatin polished satin stainless steel 5440S
5441 5440
Accessibility - Stainless Steel Range 97
