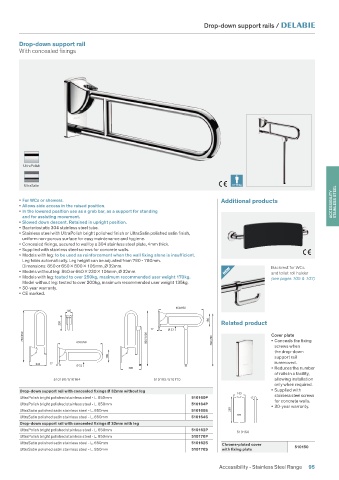

Drop-down support rails /

Drop-down support rail
With concealed fixings

UltraPolish

UltraSatin

• For WCs or showers. Additional products ACCESSIBILITY STAINLESS STEEL
• Allows side access in the raised position.
• In the lowered position use as a grab bar, as a support for standing
and for assisting movement.
• Slowed down descent. Retained in upright position.
• Bacteriostatic 304 stainless steel tube.
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene.
• Concealed fixings, secured to wall by a 304 stainless steel plate, 4mm thick.
• Supplied with stainless steel screws for concrete walls.
• Models with leg: to be used as reinforcement when the wall fixing alone is insufficient.
Leg folds automatically. Leg height can be adjusted from 760 - 780mm.
Dimensions: 850 or 650 800 105mm, Ø 32mm. Backrest for WCs
• Models without leg: 850 or 650 230 105mm, Ø 32mm. NEW and toilet roll holder
• Models with leg: tested to over 250kg, maximum recommended user weight 170kg. (see pages 105 & 107)
Model without leg: tested to over 200kg, maximum recommended user weight 135kg.
• 30-year warranty.
• CE marked.

650/850
105
180
230 Related product
17 Ø 32
750/950 800/1000 Cover plate
650/850 760/780 • Conceals the fixing
screws when
the drop-down
180 support rail
242 17 is removed.
Ø 32
300 • Reduces the number
of rails in a facility,
510160/510164 510162/510170 allowing installation
only when required.
Drop-down support rail with concealed fixings Ø 32mm without leg • Supplied with
105 stainless steel screws
UltraPolish bright polished stainless steel - L. 650mm 510160P 17
for concrete walls.
UltraPolish bright polished stainless steel - L. 850mm 510164P • 30-year warranty.
UltraSatin polished satin stainless steel - L. 650mm 510160S 230
UltraSatin polished satin stainless steel - L. 850mm 510164S
Drop-down support rail with concealed fixings Ø 32mm with leg
UltraPolish bright polished stainless steel - L. 650mm 510162P
510150
UltraPolish bright polished stainless steel - L. 850mm 510170P
UltraSatin polished satin stainless steel - L. 650mm 510162S
Chrome-plated cover
UltraSatin polished satin stainless steel - L. 850mm 510170S with fixing plate 510150

Accessibility - Stainless Steel Range 95
