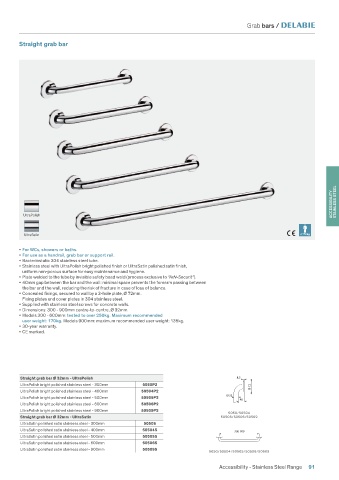

Page 93 - Accessibility-Hygienic-Accessories

Grab bars /

Straight grab bar

ACCESSIBILITY STAINLESS STEEL

UltraPolish

UltraSatin

• For WCs, showers or baths.
• For use as a handrail, grab bar or support rail.
• Bacteriostatic 304 stainless steel tube.
• Stainless steel with UltraPolish bright polished finish or UltraSatin polished satin finish,
uniform non-porous surface for easy maintenance and hygiene.
• Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
• 40mm gap between the bar and the wall: minimal space prevents the forearm passing between
the bar and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 3-hole plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
• Supplied with stainless steel screws for concrete walls.
• Dimensions: 300 - 900mm centre-to-centre, Ø 32mm.
• Models 300 - 600mm: tested to over 250kg. Maximum recommended
user weight: 170kg. Models 900mm: maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked.

Straight grab bar Ø 32mm - UltraPolish 8,5
UltraPolish bright polished stainless steel - 300mm 5050P2 Ø 72
UltraPolish bright polished stainless steel - 400mm 50504P2
Ø 32
UltraPolish bright polished stainless steel - 500mm 50505P2
40
UltraPolish bright polished stainless steel - 600mm 50506P2
UltraPolish bright polished stainless steel - 900mm 50509P2
5050/50504
Straight grab bar Ø 32mm - UltraSatin 50505/50506/50509
UltraSatin polished satin stainless steel - 300mm 5050S
UltraSatin polished satin stainless steel - 400mm 50504S
300-900
UltraSatin polished satin stainless steel - 500mm 50505S
UltraSatin polished satin stainless steel - 600mm 50506S
UltraSatin polished satin stainless steel - 900mm 50509S
5050/50504/50505/50506/50509
Accessibility - Stainless Steel Range 91
