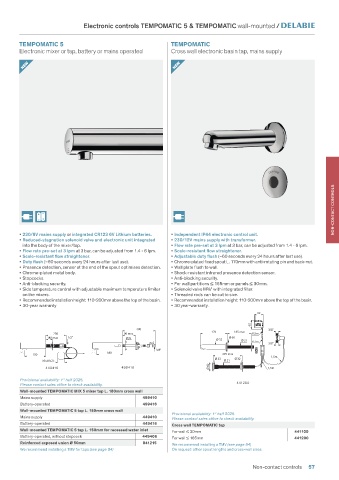

Electronic controls TEMPOMATIC 5 & TEMPOMATIC wall-mounted /

TEMPOMATIC 5 TEMPOMATIC
Electronic mixer or tap, battery or mains operated Cross wall electronic basin tap, mains supply

NEW NEW

NON-CONTACT CONTROLS

• 230/6V mains supply or integrated CR123 6V Lithium batteries. • Independent IP44 electronic control unit.
• Reduced-stagnation solenoid valve and electronic unit integrated • 230/12V mains supply with transformer.
into the body of the mixer/tap. • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm. • Scale-resistant flow straightener.
• Scale-resistant flow straightener. • Adjustable duty flush (~60 seconds every 24 hours after last use).
• Duty flush (~60 seconds every 24 hours after last use). • Chrome-plated fixed spout L. 170mm with anti-rotating pin and back-nut.
• Presence detection, sensor at the end of the spout optimises detection. • Wall plate flush to wall.
• Chrome-plated metal body. • Shock-resistant infrared presence detection sensor.
• Stopcocks. • Anti-blocking security.
• Anti-blocking security. • For wall partitions ≤ 165mm or panels ≤ 30mm.
• Side temperature control with adjustable maximum temperature limiter • Solenoid valve M⅜" with integrated filter.
on the mixers. • Threaded rods can be cut to size.
• Recommended installation height: 110 200mm above the top of the basin. • Recommended installation height: 110 200mm above the top of the basin.
• 30-year warranty • 30 year-warranty.
62

62
400 3/8"
170 165 max
230 90 max 0,5m
180 max 1/2" Ø35 Ø 32 Ø 60 Ø 21
0,1m
3/8"
3/8"
180
150 275 max
1,5m
Ø 32 Ø 32
50x50x25 Ø 21
449410 499416 Ø 60 1,5m
st
Provisional availability: 1 half 2025.
441200
Please contact sales office to check availability.
Wall-mounted TEMPOMATIC MIX 5 mixer tap L. 180mm cross wall
Mains supply 499410
Battery-operated 499416
Wall-mounted TEMPOMATIC 5 tap L. 150mm cross wall
st
Provisional availability: 1 half 2025.
Mains supply 449410 Please contact sales office to check availability.
Battery-operated 449416 Cross wall TEMPOMATIC tap
Wall-mounted TEMPOMATIC 5 tap L. 150mm for recessed water inlet For wall ≤ 30mm 441100
Battery-operated, without stopcock 449406 For wall ≤ 165mm 441200
Reinforced exposed union Ø 50mm 841215 We recommend installing a TMV (see page 84)
We recommend installing a TMV for taps (see page 84) On request: other spout lengths and cross-wall sizes.
