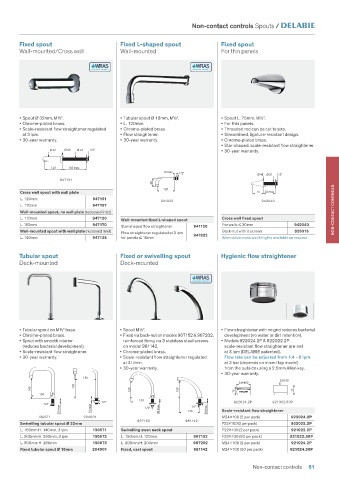

Page 63 - Water_Controls_Professional_Catering

Non-contact controls Spouts /

Fixed spout Fixed L-shaped spout Fixed spout
Wall-mounted/Cross wall Wall-mounted For thin panels

• Spout Ø 32mm, M½". • Tubular spout Ø 18mm, M½". • Spout L. 75mm, M½".
• Chrome-plated brass. • L. 120mm. • For thin panels.
• Scale-resistant flow straightener regulated • Chrome-plated brass. • Threaded rod can be cut to size.
at 3 lpm. • Flow straightener. • Streamlined, ligature-resistant design.
• 30-year warranty. • 30-year warranty. • Chrome-plated brass.
• Star-shaped, scale-resistant flow straightener.
Ø 32 Ø 60 Ø 21 1/2" • 30-year warranty.

120 165 max
10 max
1/2"
Ø 48 Ø 21 1/2"
947151
60
120
Cross wall spout with wall plate 75 30 max
L. 120mm 947151
941922 942040
L. 170mm 947157
Wall-mounted spout, no wall plate (recessed inlet) NON-CONTACT CONTROLS
L. 110mm 947120 Wall-mounted fixed L-shaped spout Cross wall fixed spout
L. 160mm 947170 Star-shaped flow straightener 941120 For walls ≤ 30mm 942040
Wall-mounted spout with wall plate (recessed inlet) Flow straightener regulated at 3 lpm Back-nut with 3 screws 826315
L. 120mm 947135 for panels ≤ 10mm 941922 Alternative cross wall lengths available on request

Tubular spout Fixed or swivelling spout Hygienic flow straightener
Deck-mounted Deck-mounted

• Tubular spout on M½" base. • Spout M½". • Flow straightener with no grid reduces bacterial
• Chrome-plated brass. • Fixed via back-nut on models 967152 & 967202, development (no water or dirt retention).
• Spout with smooth interior reinforced fixing via 3 stainless steel screws • Models 922024.2P & 922022.2P:
(reduces bacterial development). on model 981142. scale-resistant flow straightener pre-set
• Scale-resistant flow straightener. • Chrome-plated brass. at 3 lpm (DELABIE patented).
• 30-year warranty. • Scale-resistant flow straightener regulated Flow rate can be adjusted from 1.4 - 6 lpm
at 3 l/min. at 3 bar (depends on mixer/tap model)
• 30-year warranty. from the outside using a 2.5mm Allen key.
• 30-year warranty.
150
22/100
24×100
170
140 120 120 15 17
150
150
1/2" 922024.2P 921022.50P
1/2" 1/2"
25 max 15 max 1/2" 30 max 140 30 max Scale-resistant flow straightener
1306T1 204001 M24 100 (2 per pack) 922024.2P
967152 981142
Swivelling tubular spout Ø 22mm F22 100 (2 per pack) 922022.2P
L. 150mm H. 140mm, 3 lpm 1306T1 Swivelling swan neck spout F22 100 (2 per pack) 921022.2P
L. 200mm H. 260mm, 3 lpm 1306T2 L. 150mm H. 120mm 967152 F22 100 (50 per pack) 921022.50P
L. 300mm H. 260mm 1306T3 L. 200mm H. 200mm 967202 M24 100 (2 per pack) 921024.2P
Fixed tubular spout Ø 16mm 204001 Fixed, cast spout 981142 M24 100 (50 per pack) 921024.50P

Non-contact controls 61
