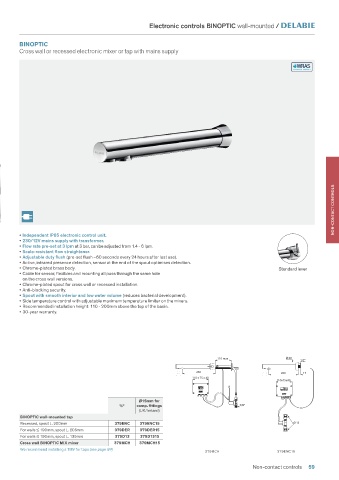

Page 61 - Water_Controls_Professional_Catering

Electronic controls BINOPTIC wall-mounted /

BINOPTIC
Cross wall or recessed electronic mixer or tap with mains supply

NON-CONTACT CONTROLS

• Independent IP65 electronic control unit.
• 230/12V mains supply with transformer.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Scale-resistant flow straightener.
• Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
• Active, infrared presence detection, sensor at the end of the spout optimises detection.
• Chrome-plated brass body. Standard lever
• Cable for sensor, flexibles and mounting all pass through the same hole
on the cross wall versions.
• Chrome-plated spout for cross wall or recessed installation.
• Anti-blocking security.
• Spout with smooth interior and low water volume (reduces bacterial development).
• Side temperature control with adjustable maximum temperature limiter on the mixers.
• Recommended installation height: 110 - 200mm above the top of the basin.
• 30-year warranty.

110 max Ø 60
1/2"
230 200 17
110 x 75 x 40
110x75x40

Ø15mm for
⅜" comp. fittings 3/8"
(UK/Ireland)
BINOPTIC wall-mounted tap
Recessed, spout L. 200mm 379ENC 379ENC15 Ø 15
For walls ≤ 190mm, spout L. 205mm 379DER 379DER15
For walls ≤ 190mm, spout L. 135mm 379D13 379D1315
Cross wall BINOPTIC MIX mixer 379MCH 379MCH15
We recommend installing a TMV for taps (see page 84)
379MCH 379ENC15
Non-contact controls 59
