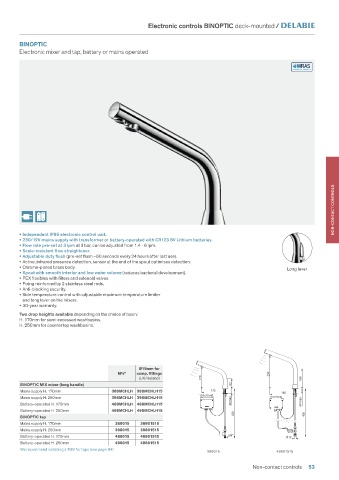

Page 55 - Water_Controls_Professional_Catering
P. 55

Electronic controls BINOPTIC deck-mounted /


            BINOPTIC
            Electronic mixer and tap, battery or mains operated




























                                                                                                                          NON-CONTACT CONTROLS









            • Independent IP65 electronic control unit.
            • 230/12V mains supply with transformer or battery-operated with CR123 6V Lithium batteries.
            • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
            • Scale-resistant flow straightener.
            • Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
            • Active, infrared presence detection, sensor at the end of the spout optimises detection.
            • Chrome-plated brass body.                                                                   Long lever
            • Spout with smooth interior and low water volume (reduces bacterial development).
            • PEX flexibles with filters and solenoid valves.
            • Fixing reinforced by 2 stainless steel rods.
            • Anti-blocking security.
            • Side temperature control with adjustable maximum temperature limiter
             and long lever on the mixers.
            • 30-year warranty.
            Two drop heights available depending on the choice of basin:
            H. 170mm for semi-recessed washbasins.
            H. 250mm for countertop washbasins.








                                                      Ø15mm for
                                               M⅜"   comp. fittings                                 250
                                                      (UK/Ireland)          170                                160
            BINOPTIC MIX mixer (long handle)                                          82
            Mains supply H. 170mm           388MCHLH  388MCHLH15               175                      185
            Mains supply H. 250mm           398MCHLH  398MCHLH15           110x75x40                110x75x40
            Battery-operated H. 170mm       488MCHLH  488MCHLH15                      40 max                   40 max
            Battery-operated H. 250mm       498MCHLH  498MCHLH15                       420
            BINOPTIC tap                                                                                        420
            Mains supply H. 170mm             388015  38801515
            Mains supply H. 250mm             398015   39801515
            Battery-operated H. 170mm         488015  48801515                       3/8"                 Ø15
            Battery-operated H. 250mm         498015  49801515
            We recommend installing a TMV for taps (see page 84)
                                                                              388015                  49801515
                                                                                              Non-contact controls  53
