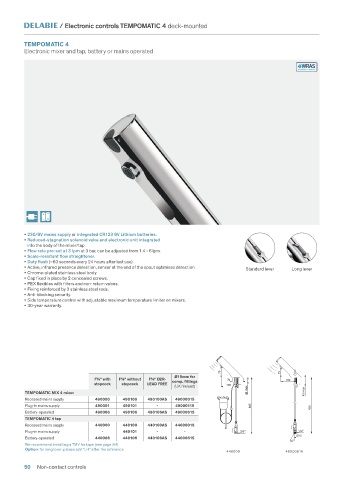

Page 52 - Water_Controls_Professional_Catering

/ Electronic controls TEMPOMATIC 4 deck-mounted

TEMPOMATIC 4
Electronic mixer and tap, battery or mains operated

• 230/6V mains supply or integrated CR123 6V Lithium batteries.
• Reduced-stagnation solenoid valve and electronic unit integrated
into the body of the mixer/tap.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use).
• Active, infrared presence detection, sensor at the end of the spout optimises detection. Standard lever Long lever
• Chrome-plated stainless steel body.
• Cap fixed in place by 2 concealed screws.
• PEX flexibles with filters and non-return valves.
• Fixing reinforced by 2 stainless steel rods.
• Anti-blocking security.
• Side temperature control with adjustable maximum temperature limiter on mixers.
• 30-year warranty.

75 75
Ø15mm for
F⅜" with F⅜" without F⅜" DZR- comp. fittings 70 110
stopcock stopcock LEAD FREE 105
(UK/Ireland)
TEMPOMATIC MIX 4 mixer 45 max 45 max
Recessed mains supply 490000 490100 490100AS 49000015 50x50x25
Plug-in mains supply 490001 490101 - 49000115 385 430
Battery-operated 490006 490106 490106AS 49000615
TEMPOMATIC 4 tap
Recessed mains supply 440000 440100 440100AS 44000015
Plug-in mains supply - 440101 - - 3/8" 1/2"
Battery-operated 440006 440106 440106AS 44000615 Ø15
30°
We recommend installing a TMV for taps (see page 84)
Option: for long lever, please add "LH" after the reference
440000 49000615
