P. 54

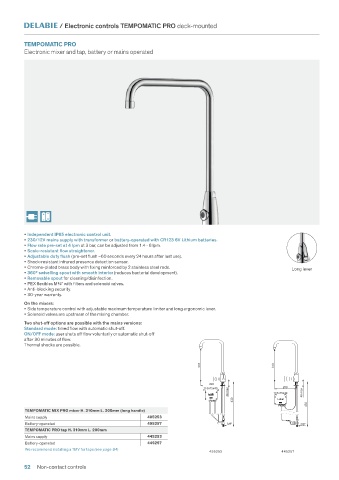

/ Electronic controls TEMPOMATIC PRO deck-mounted


              TEMPOMATIC PRO
              Electronic mixer and tap, battery or mains operated







































              • Independent IP65 electronic control unit.
              • 230/12V mains supply with transformer or battery-operated with CR123 6V Lithium batteries.
              • Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
              • Scale-resistant flow straightener.
              • Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
              • Shock-resistant infrared presence detection sensor.
              • Chrome-plated brass body with fixing reinforced by 2 stainless steel rods.                   Long lever
              • 360° swivelling spout with smooth interior (reduces bacterial development).
              • Removable spout for cleaning/disinfection.
              • PEX flexibles M⅜" with filters and solenoid valves.
              • Anti-blocking security.
              • 30-year warranty.
              On the mixers:
              • Side temperature control with adjustable maximum temperature limiter and long ergonomic lever.
              • Solenoid valves are upstream of the mixing chamber.
              Two shut-off options are possible with the mains versions:
              Standard mode: timed flow with automatic shut-off.
              ON/OFF mode: user shuts off flow voluntarily or automatic shut-off
              after 30 minutes of flow.
              Thermal shocks are possible.


                                                                           310                       310


                                                                               200
                                                                             110x75x40                   200
                                                                                     40 max          110x75x40  40 max
                                                                                       430
                                                                                                                 430
              TEMPOMATIC MIX PRO mixer H. 310mm L. 200mm (long handle)
              Mains supply                               495253
              Battery-operated                           495257                      3/8"                      3/8"
              TEMPOMATIC PRO tap H. 310mm L. 200mm
              Mains supply                               445253
              Battery-operated                           445257
              We recommend installing a TMV for taps (see page 84)
                                                                               495253                   445257
              52  Non-contact controls
