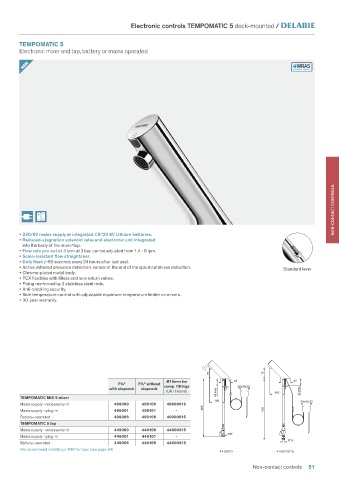

Electronic controls TEMPOMATIC 5 deck-mounted /


            TEMPOMATIC 5
            Electronic mixer and tap, battery or mains operated

             NEW

























                                                                                                                          NON-CONTACT CONTROLS









            • 230/6V mains supply or integrated CR123 6V Lithium batteries.
            • Reduced-stagnation solenoid valve and electronic unit integrated
             into the body of the mixer/tap.
            • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
            • Scale-resistant flow straightener.
            • Duty flush (~60 seconds every 24 hours after last use).
            • Active, infrared presence detection, sensor at the end of the spout optimises detection.   Standard lever
            • Chrome-plated metal body.
            • PEX flexibles with filters and non-return valves.
            • Fixing reinforced by 2 stainless steel rods.
            • Anti-blocking security.
            • Side temperature control with adjustable maximum temperature limiter on mixers.
            • 30-year warranty.














                                                                               75                 75
                                                                Ø15mm for              65                   65
                                               F⅜"    F⅜" without
                                            with stopcock  stopcock  comp. fittings      50x50x25
                                                                (UK/Ireland)     45 max               105     45 max
            TEMPOMATIC MIX 5 mixer
                                                                                 100                           50x50x25
            Mains supply - recessed unit     499000    499100   49900015
            Mains supply - plug-in           499001    499101      -        400                   420
            Battery-operated                 499006    499106   49900615
            TEMPOMATIC 5 tap
            Mains supply - recessed unit     449000    449100   44900015
            Mains supply - plug-in           449001    449101      -                 3/8"
                                                                                                          Ø15
            Battery-operated                 449006    449106   44900615
            We recommend installing a TMV for taps (see page 84)
                                                                                  449000              44900015
                                                                                              Non-contact controls  51
