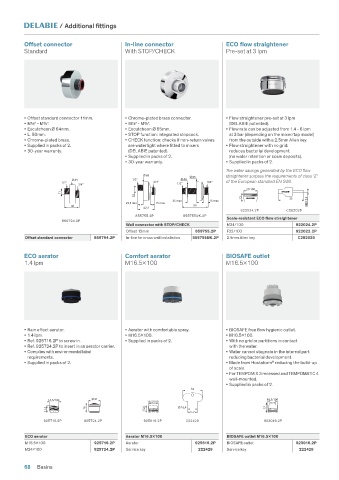

/ Additional fittings


              Offset connector                   In-line connector                   ECO flow straightener
              Standard                           With STOP/CHECK                     Pre-set at 3 lpm













              • Offset standard connector 11mm.  • Chrome-plated brass connector.    • Flow straightener pre-set at 3 lpm
              • M½" - M¾".                       • M½" - M¾".                         (DELABIE patented).
              • Escutcheon Ø 64mm.               • Escutcheon Ø 65mm.                • Flow rate can be adjusted from 1.4 - 6 lpm
              • L. 50mm.                         • STOP function: integrated stopcock.  at 3 bar (depending on the mixer/tap model)
              • Chrome-plated brass.             • CHECK function: checks if non-return valves   from the outside with a 2.5mm Allen key.
              • Supplied in packs of 2.           are watertight where fitted to mixers   • Flow straightener with no grid:
              • 30-year warranty.                 (DELABIE patented).                 reduces bacterial development
                                                 • Supplied in packs of 2.            (no water retention or scale deposits).
                                                 • 30-year warranty.                 • Supplied in packs of 2.
                                                                                     The water savings generated by the ECO flow
                                                        Ø 65            Ø 65         straightener surpass the requirements of class 'Z'
                              Ø 64                  1/2"             Ø 44
                           1/2"                            3/4"               3/4"   of the European standard EN 246.
                                 3/4"                              1/2"
                                                                                            24/100
                          11
                                                    12
                                                                                          15               35
                                                                  35 max       15 max                            HEX 2,5
                                                 22,5 min   15 max
                              50                                         90
                                                        62,2
                                                                                          922024.2P       C282025
                                                     855755.2P        855755UK.2P
                                                                                     Scale-resistant ECO flow straightener
                           856794.2P
                                                 Wall connector with STOP/CHECK      M24/100                 922024.2P
                                                 Offset 12mm              855755.2P  F22/100                 922022.2P
              Offset standard connector  856794.2P  In-line for cross wall installation  855755UK.2P  2.5mm Allen key  C282025
              ECO aerator                        Comfort aerator                     BIOSAFE outlet
              1.4 lpm                            M16.5 100                           M16.5 100











              • Rain effect aerator.             • Aerator with comfortable spray.   • BIOSAFE free flow hygienic outlet.
              • 1.4 lpm.                         • M16.5 100.                        • M16.5 100.
              • Ref. 925716.2P to screw in.      • Supplied in packs of 2.           • With no grid or partitions in contact
              • Ref. 925724.2P to insert in an aerator carrier.                       with the water.
              • Complies with environmental label                                    • Water cannot stagnate in the internal part
               requirements.                                                          reducing bacterial development.
              • Supplied in packs of 2.                                              • Made from Hostaform  reducing the build-up
                                                                                                     ®
                                                                                      of scale.
                                                                                     • For TEMPOMIX 3 recessed and TEMPOMATIC 4
                                                                                      wall-mounted.
                                                                                     • Supplied in packs of 2.
                                                                        34
                      16,5/100       Ø 21                                                          16,5/100
                                                         16,5/100
                     11,5          16                   13,6        Ø 16,4                        17
                     925716.2P     925724.2P            925616.2P      222429                     923016.2P


              ECO aerator                        Aerator M16.5 100                   BIOSAFE outlet M16.5 100
              M16.5 100               925716.2P  Aerator                  925616.2P  BIOSAFE outlet          923016.2P
              M24 100                 925724.2P  Service key               222429    Service key              222429
