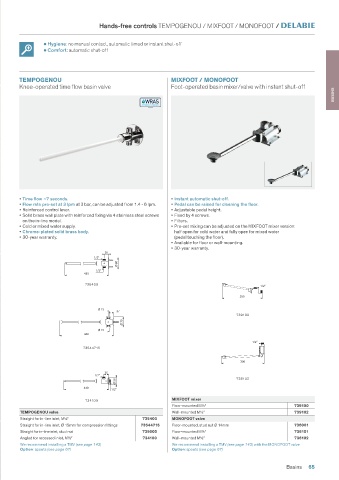

P. 67

Hands-free controls TEMPOGENOU / MIXFOOT / MONOFOOT /


                     •  Hygiene: no manual contact, automatic timed or instant shut-off
                     •  Comfort: automatic shut-off





            TEMPOGENOU                                           MIXFOOT / MONOFOOT
            Knee-operated time flow basin valve                   Foot-operated basin mixer/valve with instant shut-off
                                                                                                                          BASINS






















            • Time flow ~7 seconds.                               • Instant automatic shut-off.
            • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.  • Pedal can be raised for cleaning the floor.
            • Reinforced control lever.                          • Adjustable pedal height.
            • Solid brass wall plate with reinforced fixing via 4 stainless steel screws   • Fixed by 4 screws.
             on the in-line model.                               • Filters.
            • Cold or mixed water supply.                        • Pre-set mixing can be adjusted on the MIXFOOT mixer version:
            • Chrome-plated solid brass body.                     half open for cold water and fully open for mixed water
            • 30-year warranty.                                   (pedal touching the floor).
                                                                 • Available for floor or wall-mounting.
                                                                 • 30-year warranty.
                                          30
                                      1/2"
                                              Ø 80
                                       1/2"
                                   435
                                   735400                                                        1/2"
                                                                                         280

                                        Ø 15
                                              37
                                                                                        739100
                                                Ø 70
                                        Ø 15
                                   440
                                                                                              1/2"
                                  73544715


                                                                                          300
                                          35
                                      1/2"
                                                                                        736102
                                              Ø 50
                                   440
                                             1/2"
                                                                  MIXFOOT mixer
                                   734100
                                                                  Floor-mounted M½"                          739100
            TEMPOGENOU valve                                      Wall-mounted M½"                           739102
            Straight for in-line inlet, M½"            735400     MONOFOOT valve
            Straight for in-line inlet, Ø 15mm for compression fittings   73544715  Floor-mounted, stud nut Ø 14mm  736001
            Straight for in-line inlet, stud nut       735000     Floor-mounted M½"                          736101
            Angled for recessed inlet, M½"             734100     Wall-mounted M½"                           736102
            We recommend installing a TMV (see page 143)          We recommend installing a TMV (see page 143) with the MONOFOOT valve
            Option: spouts (see page 67)                          Option: spouts (see page 67)

                                                                                                          Basins  65
