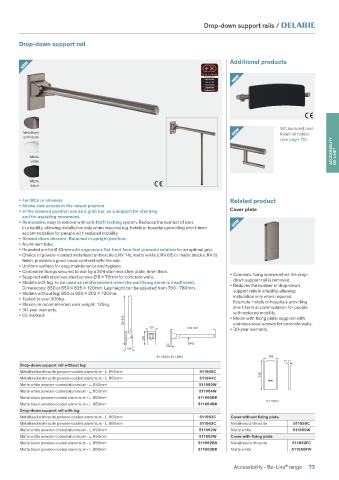

Drop-down support rails /

Drop-down support rail

NEW Additional products

NEW

Metallised NEW WC backrest and
toilet roll holder
anthracite
ACCESSIBILITY
(see page 79)
Matte BE-LINE ®
white

Matte
black

• For WCs or showers. Related product
• Allows side access in the raised position.
• In the lowered position use as a grab bar, as a support for standing Cover plate
and for assisting movement.
• Removable: easy to remove with anti-theft locking system. Reduces the number of bars NEW
in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term
accommodation for people with reduced mobility.
• Slowed down descent. Retained in upright position.
• Aluminium tube.
• Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14), matte white (LRV 82) or matte black (LRV 5)
finish; provides a good visual contrast with the wall.
• Uniform surface for easy maintenance and hygiene.
• Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick. • Conceals fixing screws when the drop-
• Supplied with stainless steel screws Ø 8 70mm for concrete walls.
down support rail is removed.
• Models with leg: to be used as reinforcement when the wall fixing alone is insufficient. • Reduces the number of drop-down
Dimensions: 850 or 650 825 120mm. Leg height can be adjusted from 760 - 780mm.
• Models without leg: 850 or 650 202 120mm. support rails in a facility, allowing
• Tested to over 200kg. installation only when required.
Example: hotels or hospitals providing
• Maximum recommended user weight: 135kg.
• 30-year warranty. short-term accommodation for people
with reduced mobility.
• CE marked.
720-920 • Model with fixing plate: supplied with
stainless steel screws for concrete walls.
120 650-850 • 30-year warranty.
202
Ø42
23
109
511960/511964 105
17
Drop-down support rail without leg
Metallised anthracite powder-coated aluminium - L. 650mm 511960C
230
Metallised anthracite powder-coated aluminium - L. 850mm 511964C
Matte white powder-coated aluminium - L. 650mm 511960W
Matte white powder-coated aluminium - L. 850mm 511964W
Matte black powder-coated aluminium - L. 650mm 511960BK
511950
Matte black powder-coated aluminium - L. 850mm 511964BK
Drop-down support rail with leg
Metallised anthracite powder-coated aluminium - L. 650mm 511962C Cover without fixing plate
Metallised anthracite powder-coated aluminium - L. 850mm 511963C Metallised anthracite 511950C
Matte white powder-coated aluminium - L. 650mm 511962W Matte white 511950W
Matte white powder-coated aluminium - L. 850mm 511963W Cover with fixing plate
Matte black powder-coated aluminium - L. 650mm 511962BK Metallised anthracite 511950FC
Matte black powder-coated aluminium - L. 850mm 511963BK Matte white 511950FW

®
Accessibility - Be-Line range 73
