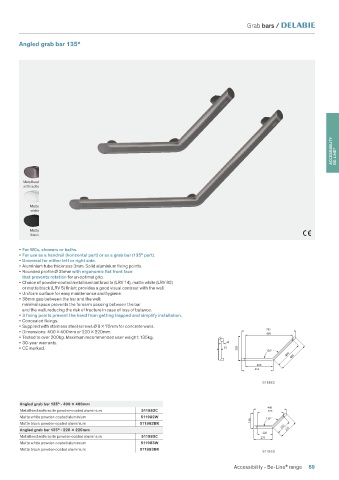

Page 71 - Accessibility-Hygienic-Accessories

Grab bars /

Angled grab bar 135°

ACCESSIBILITY BE-LINE ®

Metallised
anthracite

Matte
white

Matte
black

• For WCs, showers or baths.
• For use as a handrail (horizontal part) or as a grab bar (135° part).
• Universal for either left or right side.
• Aluminium tube thickness 3mm. Solid aluminium fixing points.
• Rounded profile Ø 35mm with ergonomic flat front face
that prevents rotation for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14), matte white (LRV 82)
or matte black (LRV 5) finish; provides a good visual contrast with the wall.
• Uniform surface for easy maintenance and hygiene.
• 38mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• 3 fixing points prevent the hand from getting trapped and simplify installation.
• Concealed fixings.
• Supplied with stainless steel screws Ø 8 70mm for concrete walls.
785
• Dimensions: 400 400mm or 220 220mm. 685
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty. 38
• CE marked. 35 283 135°
400 455
400
455

511982

Angled grab bar 135° - 400 400mm
480
Metallised anthracite powder-coated aluminium 511982C 375
Matte white powder-coated aluminium 511982W 135°
Matte black powder-coated aluminium 511982BK 156
220
Angled grab bar 135° - 220 220mm 275
220
Metallised anthracite powder-coated aluminium 511983C 275
Matte white powder-coated aluminium 511983W
Matte black powder-coated aluminium 511983BK
511983
Accessibility - Be-Line range 69
®
