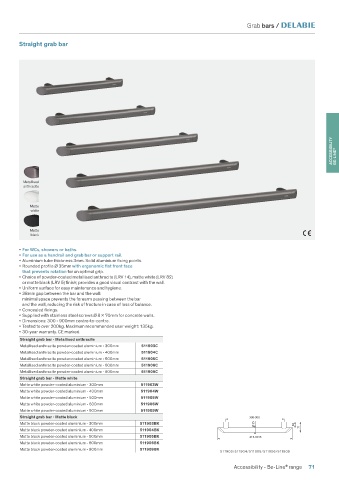

Page 73 - Accessibility-Hygienic-Accessories

Grab bars /

Straight grab bar

ACCESSIBILITY BE-LINE ®

Metallised
anthracite

Matte
white

Matte
black

• For WCs, showers or baths.
• For use as a handrail and grab bar or support rail.
• Aluminium tube thickness 3mm. Solid aluminium fixing points.
• Rounded profile Ø 35mm with ergonomic flat front face
that prevents rotation for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14), matte white (LRV 82)
or matte black (LRV 5) finish; provides a good visual contrast with the wall.
• Uniform surface for easy maintenance and hygiene.
• 38mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings.
• Supplied with stainless steel screws Ø 8 70mm for concrete walls.
• Dimensions: 300 - 900mm centre-to-centre.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty. CE marked.
Straight grab bar - Metallised anthracite
Metallised anthracite powder-coated aluminium - 300mm 511903C
Metallised anthracite powder-coated aluminium - 400mm 511904C
Metallised anthracite powder-coated aluminium - 500mm 511905C
Metallised anthracite powder-coated aluminium - 600mm 511906C
Metallised anthracite powder-coated aluminium - 900mm 511909C
Straight grab bar - Matte white
Matte white powder-coated aluminium - 300mm 511903W
Matte white powder-coated aluminium - 400mm 511904W
Matte white powder-coated aluminium - 500mm 511905W
Matte white powder-coated aluminium - 600mm 511906W
Matte white powder-coated aluminium - 900mm 511909W
Straight grab bar - Matte black 300-900
Matte black powder-coated aluminium - 300mm 511903BK Ø 35 38
Matte black powder-coated aluminium - 400mm 511904BK 71
Matte black powder-coated aluminium - 500mm 511905BK 413-1013
Matte black powder-coated aluminium - 600mm 511906BK
Matte black powder-coated aluminium - 900mm 511909BK
511903/511904/511905/511906/511909
®
Accessibility - Be-Line range 71
