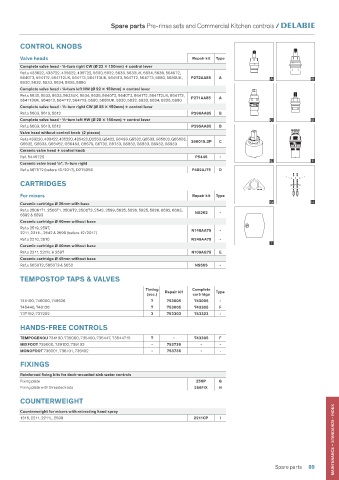

Page 91 - Water_Controls_Professional_Catering

Spare parts Pre-rinse sets and Commercial Kitchen controls /

CONTROL KNOBS

Valve heads Repair kit Type
Complete valve head - ¼-turn right CW (Ø 22 150mm) + control lever
Ref.s 433622, 433722, 435622, 435722, 5630, 5632, 5633, 5633UK, 5634, 5636, 5640T2,
5640T3, 5641T2, 5641T2UK, 5641T3, 5641T3UK, 5645T2, 5647T2, 5647T3, 5680, 5680UK, P272AA85 A A B
5830, 5832, 5833, 5834, 5836, 5880
Complete valve head - ¼-turn left HW (Ø 22 150mm) + control lever
Ref.s 5630, 5632, 5633, 5633UK, 5634, 5636, 5640T2, 5640T3, 5641T2, 5641T2UK, 5641T3, P271AA85 A
5641T3UK, 5645T2, 5647T2, 5647T3, 5680, 5680UK, 5830, 5832, 5833, 5834, 5836, 5880
Complete valve head - ½-turn right CW (Ø 28 150mm) + control lever
Ref.s 5603, 5610, 5612 P296AA85 B
Complete valve head - ½-turn left HW (Ø 28 150mm) + control lever C D
Ref.s 5603, 5610, 5612 P295AA85 B
Valve head without control knob (2 pieces)
Ref.s 433220, 433422, 435220, 435422, D2553, G6432, G6433, G6532, G6533, G65602, G65603, 366015.2P C
G6632, G6633, G66452, G66453, G6679, G6732, G6733, G6832, G6833, G6932, G6933
Ceramic valve head + control knob
Ref. 5445T2S P5445 -
Ceramic valve head ½", ¼-turn right E F
Ref.s 5675T2 (before 12/2017), D275059 P482AJ75 D

CARTRIDGES

For mixers Repair kit Type
Ceramic cartridge Ø 35mm with base G H
Ref.s 25061T1, 2506T1, 2506T2, 2506T3, 2542, 2599, 5625, 5626, 5825, 5826, 6692, 6693, NS262 -
6892 & 6893
Ceramic cartridge Ø 40mm without base
Ref.s 2519, 2597, N148AA75 -
2211, 2211L, 2542 & 2599 (before 12/2017)
Ref.s 2210, 2510 N249AA75 -
I
Ceramic cartridge Ø 40mm without base
Ref.s 2211, 2211L & 2597 N109AG75 E
Ceramic cartridge Ø 45mm without base
Ref.s 5650T2, 5650T3 & 5652 NS565 -

TEMPOSTOP TAPS & VALVES

Timing Repair kit Complete Type
(sec.) cartridge
745100, 746000, 748626 7 753005 743005 -
745440, 748126 7 753005 743305 F
737152, 737202 3 753303 743323 -

HANDS FREE CONTROLS
TEMPOGENOU 734100, 735000, 735400, 735447, 73544715 7 - 743305 F
MIXFOOT 739000, 739100, 739102 - 753739 - -
MONOFOOT 736001, 736101, 736102 - 753736 - -

FIXINGS
Reinforced fixing kits for deck-mounted sink water controls
Fixing plate 256P G
Fixing plate with threaded rods 256FIX H

COUNTERWEIGHT
MAINTENANCE – STANDARDS - INDEX
Counterweight for mixers with retracting hand spray
1316, 2211, 2211L, 2599 2211CP I

Spare parts 89
