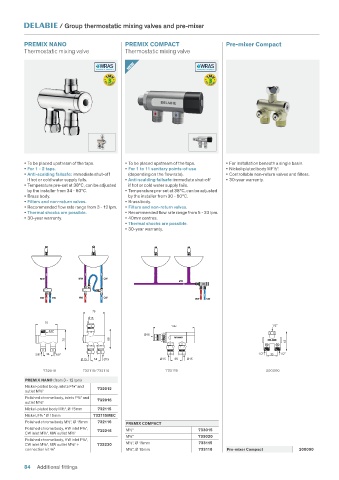

/ Group thermostatic mixing valves and pre-mixer

PREMIX NANO PREMIX COMPACT Pre-mixer Compact
Thermostatic mixing valve Thermostatic mixing valve

NEW

• To be placed upstream of the taps. • To be placed upstream of the taps. • For installation beneath a single basin.
• For 1 - 2 taps. • For 1 to 11 sanitary points-of-use • Nickel-plated body MF½".
• Anti-scalding failsafe: immediate shut-off (depending on the flow rate). • Controllable non-return valves and filters.
if hot or cold water supply fails. • Anti-scalding failsafe: immediate shut-off • 30-year warranty.
• Temperature pre-set at 38°C, can be adjusted if hot or cold water supply fails.
by the installer from 34 - 60°C. • Temperature pre-set at 38°C, can be adjusted
• Brass body. by the installer from 30 - 60°C.
• Filters and non-return valves. • Brass body.
• Recommended flow rate range from 3 - 12 lpm. • Filters and non-return valves.
• Thermal shocks are possible. • Recommended flow rate range from 5 - 33 lpm.
• 30-year warranty. • 40mm centres.
• Thermal shocks are possible.
• 30-year warranty.

MW MW CW
MW

HW CW HW CW HW CW

75
Ø15
75
140 1/2"
3/8"
Ø15
70 68 65

3/8" 34 3/8" 1/2" 35 1/2"
Ø 15 34 Ø15 Ø15 40 Ø15

732016 732115/732116 733115 200000
PREMIX NANO (from 3 - 12 lpm)
Nickel-plated body, inlets F⅜" and 732012
outlet M⅜"
Polished chrome body, inlets F⅜" and 732016
outlet M⅜"
Nickel-plated body M½", Ø 15mm 732115
Nickel, F½ " Ø 15mm 732115MEC
Polished chrome body M½", Ø 15mm 732116 PREMIX COMPACT
Polished chrome body, HW inlet F⅜", M½" 733015
CW inlet M⅜", MW outlet M⅜" 732216
M¾" 733020
Polished chrome body, HW inlet F⅜",
CW inlet M⅜", MW outlet M⅜" + 732230 M½", Ø 15mm 733115
connection kit ⅜" M¾", Ø 15mm 733116 Pre-mixer Compact 200000

84 Additional fittings
