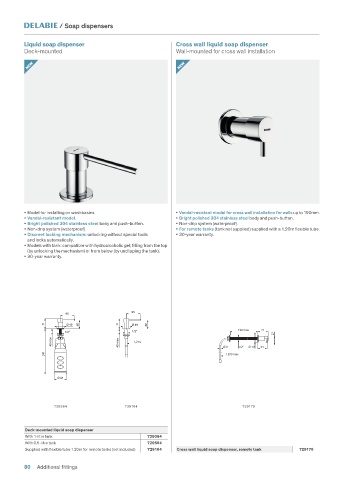

Page 82 - Water_Controls_Professional_Catering

/ Soap dispensers

Liquid soap dispenser Cross wall liquid soap dispenser
Deck-mounted Wall-mounted for cross wall installation

NEW NEW

• Model for installing on washbasins. • Vandal-resistant model for cross wall installation for walls up to 190mm.
• Vandal-resistant model. • Bright polished 304 stainless steel body and push-button.
• Bright polished 304 stainless steel body and push-button. • Non-drip system (waterproof).
• Non-drip system (waterproof). • For remote tanks (tank not supplied) supplied with a 1.20m flexible tube.
• Discreet locking mechanism: unlocking without special tools • 30-year warranty.
and locks automatically.
• Models with tank: compatible with hydroalcoholic gel; filling from the top
(by unlocking the mechanism) or from below (by unclipping the tank).
• 30-year warranty.

95
95
71 Ø 49 60 71 Ø 49 60
1/2" 1/2" 190 max 71
27
40 max 40 max 1,2 m Ø 9 1/2" Ø 49 64

241 1200 max

Ø 84

729564 729164 729170

Deck-mounted liquid soap dispenser
With 1-litre tank 729064
With 0.5-litre tank 729564
Supplied with flexible tube 1.20m for remote tanks (not included) 729164 Cross wall liquid soap dispenser, remote tank 729170

80 Additional fittings
