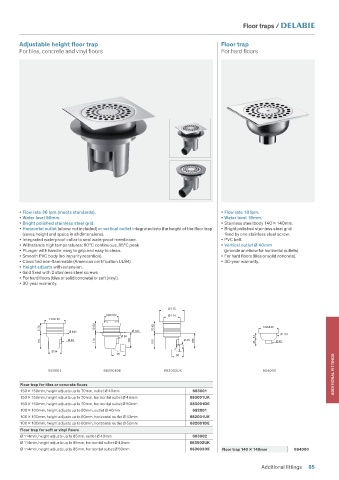

Page 87 - Water_Controls_Professional_Catering

Floor traps /

Adjustable height floor trap Floor trap
For tiles, concrete and vinyl floors For hard floors

• Flow rate 36 lpm (meets standards). • Flow rate 18 lpm.
• Water level 50mm. • Water level 18mm.
• Bright polished stainless steel grid. • Stainless steel body 140 140mm.
• Horizontal outlet (elbow not included) or vertical outlet integrated into the height of the floor trap • Bright polished stainless steel grid
(saves height and space in all dimensions). fixed by one stainless steel screw.
• Integrated waterproof collar to seal waterproof membrane. • PVC bell.
• Withstands high temperatures: 60°C continuous, 85°C peak. • Vertical outlet Ø 40mm
• Plunger with handle: easy to grip and easy to clean. (provide an elbow for horizontal outlets).
• Smooth PVC body (no impurity retention). • For hard floors (tiles or solid concrete).
• Classified non-flammable (American certification UL94). • 30-year warranty.
• Height adjusts with extension.
• Grid fixed with 2 stainless steel screws.
• For hard floors (tiles or solid concrete) or soft (vinyl).
• 30-year warranty.

Ø 175
100x100 Ø 114
150x150
5-70 15-80 10-85 140x140
Ø 165 Ø 165
Ø 110
Ø 94 52
110 Ø 40 110 105 110 Ø 43 100 23 Ø 40
Ø 94
96
ADDITIONAL FITTINGS
80
683001 682001DE 683002UK 684000
Floor trap for tiles or concrete floors
150 150mm, height adjusts up to 70mm, outlet Ø 40mm 683001
150 150mm, height adjusts up to 70mm, horizontal outlet Ø 43mm 683001UK
150 150mm, height adjusts up to 70mm, horizontal outlet Ø 50mm 683001DE
100 100mm, height adjusts up to 80mm, outlet Ø 40mm 682001
100 100mm, height adjusts up to 80mm, horizontal outlet Ø 43mm 682001UK
100 100mm, height adjusts up to 80mm, horizontal outlet Ø 50mm 682001DE
Floor trap for soft or vinyl floors
Ø 114mm, height adjusts up to 85mm, outlet Ø 40mm 683002
Ø 114mm, height adjusts up to 85mm, horizontal outlet Ø 43mm 683002UK
Ø 114mm, height adjusts up to 85mm, horizontal outlet Ø 50mm 683002DE Floor trap 140 140mm 684000

Additional fittings 85
