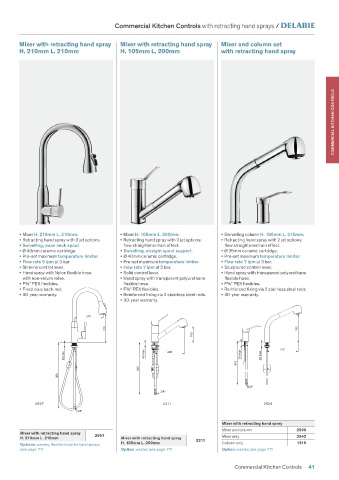

Commercial Kitchen Controls with retracting hand sprays /


            Mixer with retracting hand spray   Mixer with retracting hand spray    Mixer and column set
            H. 210mm L. 210mm                  H. 105mm L. 200mm                   with retracting hand spray







                                                                                                                          COMMERCIAL KITCHEN CONTROLS






























            • Mixer H. 210mm L. 210mm.         • Mixer H. 105mm L. 200mm.          • Swivelling column H. 195mm L. 215mm.
            • Retracting hand spray with 3 jet options.  • Retracting hand spray with 2 jet options:    • Retracting hand spray with 2 jet options:
            • Swivelling, swan neck spout.       flow straightener/rain effect.      flow straightener/rain effect.
            • Ø 40mm ceramic cartridge.        • Swivelling, straight spout support.  • Ø 35mm ceramic cartridge.
            • Pre-set maximum temperature limiter.  • Ø 40mm ceramic cartridge.    • Pre-set maximum temperature limiter.
            • Flow rate 5 lpm at 3 bar.        • Pre-set maximum temperature limiter.  • Flow rate 7 lpm at 3 bar.
            • Slimline control lever.          • Flow rate 7 lpm at 3 bar.         • Sculptured control lever.
            • Hand spray with Nylon flexible hose    • Solid control lever.         • Hand spray with transparent polyurethane
             with non-return valve.            • Hand spray with transparent polyurethane   flexible hose.
            • F⅜" PEX flexibles.                  flexible hose.                     • F⅜" PEX flexibles.
            • Fixed via a back-nut.            • F⅜" PEX flexibles.                 • Reinforced fixing via 2 stainless steel rods.
            • 30-year warranty.                • Reinforced fixing via 2 stainless steel rods.  • 30-year warranty.
                                               • 30-year warranty.


                                   210
                                          210                                                                 195
                                                                         105


                            30 max                      40 max  200                       35 max  25 max  215
                                                                                        410
                                                      360
                         480

                                                                                             3/8"
                                                             3/8"

                  2597                                        2211                                2599
                                 3/8"

                                                                                   Mixer with retracting hand spray
                                                                                   Mixer and column          2599
            Mixer with retracting hand spray
                                       2597                                        Mixer only                2542
            H. 210mm L. 210mm                   Mixer with retracting hand spray
                                                                          2211
            Options: wastes, flexible hose for hand sprays   H. 105mm L. 200mm      Column only               1316
            (see page 77)                       Option: wastes (see page 77)       Option: wastes (see page 77)
