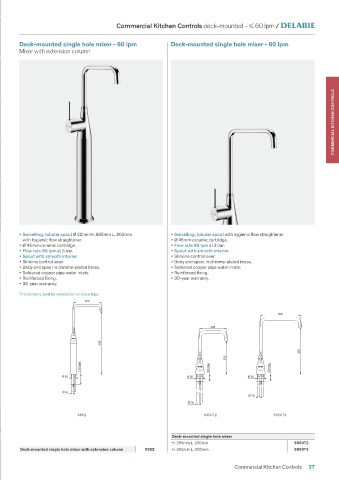

P. 39

Commercial Kitchen Controls deck-mounted - ≤ 60 lpm /


            Deck-mounted single hole mixer - 60 lpm              Deck-mounted single hole mixer - 60 lpm
            Mixer with extension column







                                                                                                                          COMMERCIAL KITCHEN CONTROLS






























            • Swivelling, tubular spout Ø 22mm H. 685mm L. 300mm    • Swivelling, tubular spout with hygienic flow straightener.
             with hygienic flow straightener.                     • Ø 45mm ceramic cartridge.
            • Ø 45mm ceramic cartridge.                          • Flow rate 60 lpm at 3 bar.
            • Flow rate 60 lpm at 3 bar.                         • Spout with smooth interior.
            • Spout with smooth interior.                        • Slimline control lever.
            • Slimline control lever.                            • Body and spout in chrome-plated brass.
            • Body and spout in chrome-plated brass.             • Soldered copper pipe water inlets.
            • Soldered copper pipe water inlets.                 • Reinforced fixing.
            • Reinforced fixing.                                  • 30-year warranty.
            • 30-year warranty.

            This model is ideal for installation on stove tops.
                                   300

                                                                                                       300

                                                                               200

                                         685
                                                                                                              355
                                                                                    255
                                 110 max                                       50 max               50 max

                           Ø 50                                        Ø 50                 Ø 50

                           Ø 16
                                                                                             Ø 16
                                                                       Ø 16
                                5652                                         5650T2                  5650T3



                                                                  Deck-mounted single hole mixer
                                                                  H. 255mm L. 200mm                          5650T2
            Deck-mounted single hole mixer with extension column  5652  H. 355mm L. 300mm                    5650T3

                                                                                        Commercial Kitchen Controls  37
