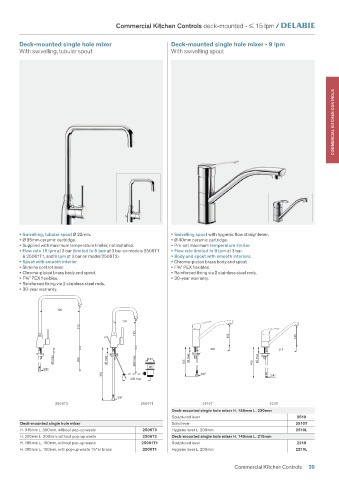

P. 41

Commercial Kitchen Controls deck-mounted - ≤ 15 lpm /


            Deck-mounted single hole mixer                       Deck-mounted single hole mixer - 9 lpm
            With swivelling, tubular spout                       With swivelling spout







                                                                                                                          COMMERCIAL KITCHEN CONTROLS






























            • Swivelling, tubular spout Ø 22mm.                  • Swivelling spout with hygienic flow straightener.
            • Ø 35mm ceramic cartridge.                          • Ø 40mm ceramic cartridge.
            • Supplied with maximum temperature limiter, not installed.  • Pre-set maximum temperature limiter.
            • Flow rate 15 lpm at 3 bar (limited to 5 lpm at 3 bar on models 2506T1   • Flow rate limited to 9 lpm at 3 bar.
             & 25061T1, and 9 lpm at 3 bar on model 2506T2).     • Body and spout with smooth interiors.
            • Spout with smooth interior.                        • Chrome-plated brass body and spout.
            • Slimline control lever.                            • F⅜" PEX flexibles.
            • Chrome-plated brass body and spout.                • Reinforced fixing via 2 stainless steel rods.
            • F⅜" PEX flexibles.                                  • 30-year warranty.
            • Reinforced fixing via 2 stainless steel rods.
            • 30-year warranty.


                         300

                                                150
                                 315
                                                     195                              155                    145


                                                                               230                     215
                        40 max   360       40 max    300 max  Ø 63    365  35 max             410  40 max

                     3/8"
                                         355                                3/8"                     3/8"
                                                   200 max



                                              3/8"
                         2506T3                        2506T1               2510T                   2210
                                                                  Deck-mounted single hole mixer H. 155mm L. 230mm
                                                                  Sculptured lever                           2510
            Deck-mounted single hole mixer                        Solid lever                                2510T
            H. 315mm L. 300mm, without pop-up waste    2506T3     Hygiene lever L. 200mm                     2510L
            H. 220mm L. 200mm, without pop-up waste    2506T2     Deck-mounted single hole mixer H. 145mm L. 215mm
            H. 195mm L. 150mm, without pop-up waste    25061T1    Sculptured lever                           2210
            H. 195mm L. 150mm, with pop-up waste 1¼" in brass  2506T1  Hygiene lever L. 200mm                2210L

                                                                                        Commercial Kitchen Controls  39
