P. 40

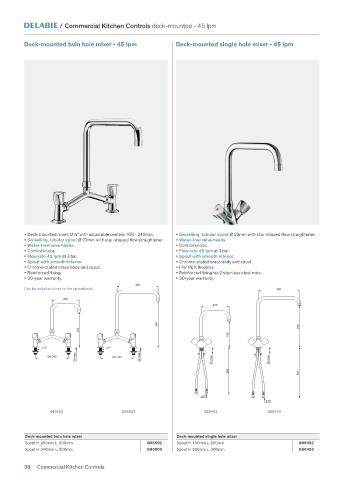

/ Commercial Kitchen Controls deck-mounted - 45 lpm


              Deck-mounted twin hole mixer - 45 lpm                Deck-mounted single hole mixer - 45 lpm








































              • Deck-mounted mixer, M½" with adjustable centres 100 - 240mm.  • Swivelling, tubular spout Ø 22mm with star-shaped flow straightener.
              • Swivelling, tubular spout Ø 22mm with star-shaped flow straightener.  • Water-free valve heads.
              • Water-free valve heads.                            • Control knobs.
              • Control knobs.                                     • Flow rate 45 lpm at 3 bar.
              • Flow rate 45 lpm at 3 bar.                         • Spout with smooth interior.
              • Spout with smooth interior.                        • Chrome-plated brass body and spout.
              • Chrome-plated brass body and spout.                • F⅜" PEX flexibles.
              • Reinforced fixing.                                  • Reinforced fixing via 2 stainless steel rods.
              • 30-year warranty.                                  • 30-year warranty.
                                                     300
              Can be installed close to the splashback.                                               300
                           200
                                                                                200


                                                            340                                               290
                                 250
                                                                                     190

                    1/2"                  1/2"
                                26 max      100-240   26 max                    30 max              30 max
                      100-240

                                                                                     360                      365



                                                                            3/8"
                                                                                                    3/8"
                       G65602                   G65603                       G66452                G66453




              Deck-mounted twin hole mixer                         Deck-mounted single hole mixer
              Spout H. 250mm L. 200mm                    G65602    Spout H. 190mm L. 200mm                    G66452
              Spout H. 340mm L. 300mm                    G65603    Spout H. 290mm L. 300mm                    G66453

              38  Commercial Kitchen Controls
