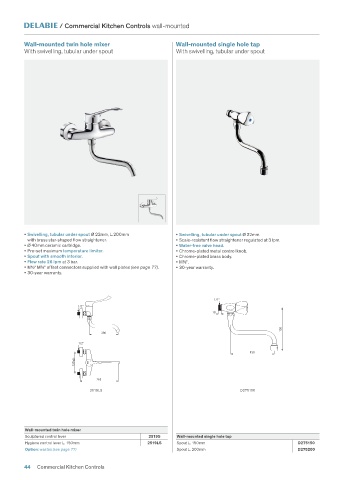

/ Commercial Kitchen Controls wall-mounted


              Wall-mounted twin hole mixer                         Wall-mounted single hole tap
              With swivelling, tubular under spout                 With swivelling, tubular under spout







































              • Swivelling, tubular under spout Ø 22mm, L.200mm    • Swivelling, tubular under spout Ø 22mm.
               with brass star-shaped flow straightener.            • Scale-resistant flow straightener regulated at 3 lpm.
              • Ø 40mm ceramic cartridge.                          • Water-free valve head.
              • Pre-set maximum temperature limiter.               • Chrome-plated metal control knob.
              • Spout with smooth interior.                        • Chrome-plated brass body.
              • Flow rate 26 lpm at 3 bar.                         • M½".
              • M½" M¾" offset connectors supplied with wall plates (see page 77).   • 30-year warranty.
              • 30-year warranty.




                                                                                1/2"
                                 1/2"
                                                                                10

                                                                                                        150
                                 1/2"    200

                                 1/2"    200
                                                                                             150
                               20
                               150 ±


                                       265
                                     2519LS                                               D275150






              Wall-mounted twin hole mixer
              Sculptured control lever                   2519S     Wall-mounted single hole tap
              Hygiene control lever L. 150mm             2519LS    Spout L. 150mm                             D275150
              Option: wastes (see page 77)                         Spout L. 200mm                             D275200

              44  Commercial Kitchen Controls
