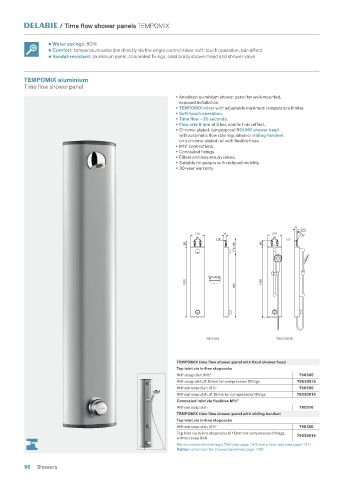

Page 98 - Water_Controls_for_Public-Commercial

/ Time flow shower panels TEMPOMIX

• Water savings: 80%
• Comfort: temperature selection directly via the single control mixer, soft-touch operation, rain effect
• Vandal-resistant: aluminium panel, concealed fixings, solid brass shower head and shower valve

TEMPOMIX aluminium
Time flow shower panel
• Anodised aluminium shower panel for wall-mounted,
exposed installation.
• TEMPOMIX mixer with adjustable maximum temperature limiter.
• Soft-touch operation.
• Time flow ~30 seconds.
• Flow rate 6 lpm at 3 bar, comfort rain effect.
• Chrome-plated, tamperproof ROUND shower head
with automatic flow rate regulation or sliding handset
on a chrome-plated rail with flexible hose.
• M½" connections.
• Concealed fixings.
• Filters and non-return valves.
• Suitable for people with reduced mobility.
• 30-year warranty.

34
Ø15
210 34 210
30°
80 1/2" 80 1/2"
80 80
170-190

160x40x60
1050 1050
945

790305 79035015

TEMPOMIX time flow shower panel with fixed shower head
Top inlet via in-line stopcocks
With soap dish, M½" 790305
With soap dish, Ø 15mm for compression fittings 79030515
Without soap dish, M½" 790300
Without soap dish, Ø 15mm for compression fittings 79030015
Concealed inlet via flexibles M½"
Without soap dish 790310
TEMPOMIX time flow shower panel with sliding handset
Top inlet via in-line stopcocks
Without soap dish, M½" 790350
Top inlet via in-line stopcocks Ø 15mm for compression fittings, 79035015
without soap dish
We recommend installing a TMV (see page 143) and a floor trap (see page 131)
Option: extension for shower panel (see page 106)
