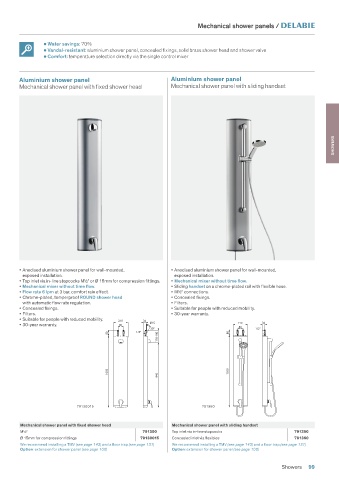

Mechanical shower panels /

• Water savings: 70%
• Vandal-resistant: aluminium shower panel, concealed fixings, solid brass shower head and shower valve
• Comfort: temperature selection directly via the single control mixer

Aluminium shower panel Aluminium shower panel
Mechanical shower panel with fixed shower head Mechanical shower panel with sliding handset

SHOWERS

• Anodised aluminium shower panel for wall-mounted, • Anodised aluminium shower panel for wall-mounted,
exposed installation. exposed installation.
• Top inlet via in-line stopcocks M½" or Ø 15mm for compression fittings. • Mechanical mixer without time flow.
• Mechanical mixer without time flow. • Sliding handset on a chrome-plated rail with flexible hose.
• Flow rate 6 lpm at 3 bar, comfort rain effect. • M½" connections.
• Chrome-plated, tamperproof ROUND shower head • Concealed fixings.
with automatic flow rate regulation. • Filters.
• Concealed fixings. • Suitable for people with reduced mobility.
• Filters. • 30-year warranty.
• Suitable for people with reduced mobility.
210 34
• 30-year warranty. 80 Ø15 210 34
30° 80 1/2"
80 1/2" 80
170-190

1050 1050
945

79130015 791350

Mechanical shower panel with fixed shower head Mechanical shower panel with sliding handset
M½" 791300 Top inlet via in-line stopcocks 791350
Ø 15mm for compression fittings 79130015 Concealed inlet via flexibles 791360
We recommend installing a TMV (see page 143) and a floor trap (see page 131) We recommend installing a TMV (see page 143) and a floor trap (see page 131)
Option: extension for shower panel (see page 106) Option: extension for shower panel (see page 106)

Showers 99
