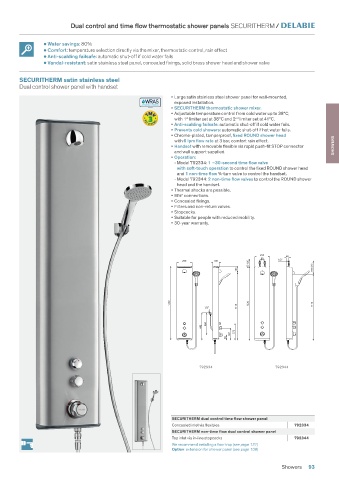

Dual control and time flow thermostatic shower panels SECURITHERM /

• Water savings: 80%
• Comfort: temperature selection directly via the mixer, thermostatic control, rain effect
• Anti-scalding failsafe: automatic shut-off if cold water fails
• Vandal-resistant: satin stainless steel panel, concealed fixings, solid brass shower head and shower valve

SECURITHERM satin stainless steel
Dual control shower panel with handset
• Large satin stainless steel shower panel for wall-mounted,
exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C;
st
nd
with 1 limiter set at 38°C and 2 limiter set at 41°C.
• Anti-scalding failsafe: automatic shut-off if cold water fails.
• Prevents cold showers: automatic shut-off if hot water fails.
• Chrome-plated, tamperproof, fixed ROUND shower head
with 6 lpm flow rate at 3 bar, comfort rain effect.
• Handset with removable flexible via rapid push-fit STOP connector SHOWERS
and wall support supplied.
• Operation:
- Model 792334: 1 ~30-second time flow valve
with soft-touch operation to control the fixed ROUND shower head
and 1 non-time flow ¼-turn valve to control the handset.
- Model 792344: 2 non-time flow valves to control the ROUND shower
head and the handset.
• Thermal shocks are possible.
• M½" connections.
• Concealed fixings.
• Filters and non-return valves.
• Stopcocks.
• Suitable for people with reduced mobility.
• 30-year warranty.

250 40
80
250 100 1/2"
65-105
105 170-210

1220 1220 1115
1/2" 1115

360
445
272
197
85

792334 792344

SECURITHERM dual control time flow shower panel
Concealed inlet via flexibles 792334
SECURITHERM non-time flow dual control shower panel
Top inlet via in-line stopcocks 792344
We recommend installing a floor trap (see page 131)
Option: extension for shower panel (see page 106)

Showers 93
