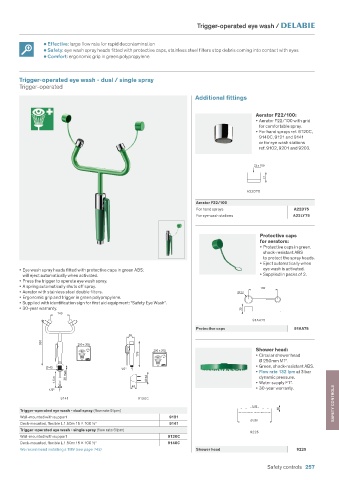

Page 259 - Water_Controls_for_Public-Commercial

Trigger-operated eye wash /

• Effective: large flow rate for rapid decontamination
• Safety: eye wash spray heads fitted with protective caps, stainless steel filters stop debris coming into contact with eyes
• Comfort: ergonomic grip in green polypropylene

Trigger-operated eye wash - dual / single spray
Trigger-operated

Additional fittings

Aerator F22/100:
• Aerator F22/100 with grid
for comfortable spray.
• For hand sprays ref. 9120C,
9140C, 9121 and 9141
or for eye wash stations
ref. 9102, 9201 and 9203.

22 x 100
17

A22D75

Aerator F22/100
For hand sprays A22D75
For eye wash stations A22LY75

Protective caps
for aerators:
• Protective caps in green,
shock-resistant ABS
to protect the spray heads.
• Eject automatically when
• Eye wash spray heads fitted with protective caps in green ABS; eye wash is activated.
will eject automatically when activated. • Supplied in packs of 2.
• Press the trigger to operate eye wash spray.
• A spring automatically shuts off spray. 100
• Aerator with stainless steel double filters. Ø 23
• Ergonomic grip and trigger in green polypropylene.
• Supplied with identification sign for first aid equipment: "Safety Eye Wash".
• 30-year warranty. 20
140
91AA75
Protective caps 91AA75
50
330 200 x 200
200 x 200 Shower head:
176 • Circular shower head
Ø 250mm M1".
Ø 45 • Green, shock-resistant ABS.
1/2" • Flow rate 132 lpm at 3 bar
30 max dynamic pressure.
1,5 m Ø 52 • Water supply F1".
45
1/2" • 30-year warranty.
9141 9120C SAFETY CONTROLS
48
Trigger-operated eye wash - dual spray (flow rate 9 lpm)
Wall-mounted with support 9121
Ø 250
Deck-mounted, flexible L.1.50m 15 100 ½" 9141
Trigger-operated eye wash - single spray (flow rate 6 lpm)
9225
Wall-mounted with support 9120C
Deck-mounted, flexible L.1.50m 15 100 ½" 9140C
We recommend installing a TMV (see page 143) Shower head 9225

Safety controls 257
