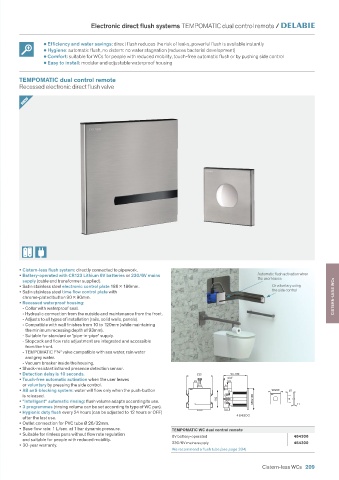

Page 211 - Water_Controls_for_Public-Commercial

Electronic direct flush systems TEMPOMATIC dual control remote /

• Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
• Hygiene: automatic flush, no cistern: no water stagnation (reduces bacterial development)
• Comfort: suitable for WCs for people with reduced mobility, touch-free automatic flush or by pushing side control
• Easy to install: modular and adjustable waterproof housing

TEMPOMATIC dual control remote
Recessed electronic direct flush valve

NEW

• Cistern-less flush system: directly connected to pipework.
• Battery-operated with CR123 Lithium 6V batteries or 230/6V mains Automatic flush activation when
supply (cable and transformer supplied). the user leaves
• Satin stainless steel electronic control plate 186 186mm. Or voluntary using
• Satin stainless steel time flow control plate with the side control
chrome-plated button 90 90mm. CISTERN-LESS WCs
• Recessed waterproof housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes from 10 to 120mm (while maintaining
the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcock and flow rate adjustment are integrated and accessible
from the front.
- TEMPOMATIC F¾" valve compatible with sea water, rain water
and grey water.
- Vacuum breaker inside the housing.
• Shock-resistant infrared presence detection sensor.
• Detection delay is 10 seconds. 225 93-190
• Touch-free automatic activation when the user leaves 3/4"
or voluntary by pressing the side control.
• AB anti-blocking system: water will flow only when the push-button 90x90 50
is released.
• "Intelligent" automatic rinsing: flush volume adapts according to use. 150 186x186
• 3 programmes (rinsing volume can be set according to type of WC pan). 11
• Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF)
after the last use. 464300
• Outlet connection for PVC tube Ø 26/32mm.
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure. TEMPOMATIC WC dual control remote
• Suitable for rimless pans without flow rate regulation 6V battery-operated 464306
and suitable for people with reduced mobility.
• 30-year warranty. 230/6V mains supply 464300
We recommend a flush tube (see page 234)

Cistern-less WCs 209
