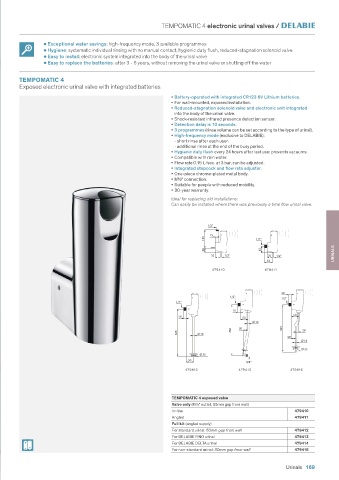

Page 171 - Water_Controls_for_Public-Commercial

Electronic urinal valves TEMPOMATIC 4 /

• Water savings: high-frequency mode, 3 available programmes
• Hygiene: systematic individual rinsing with no manual contact, hygienic duty flush, reduced-stagnation solenoid valve
• Easy to install: electronic system integrated into the body of the urinal valve
• Easy to replace the batteries: after 3 - 6 years, without removing the urinal valve or shutting off the water

TEMPOMATIC 4
Exposed electronic urinal valve with integrated batteries

• Battery-operated with integrated CR123 6V Lithium batteries.
• For wall-mounted, exposed installation.
• Reduced-stagnation solenoid valve and electronic unit integrated
into the body of the urinal valve.
• Shock-resistant infrared presence detection sensor.
• Detection delay is 10 seconds.
• 3 programmes (rinse volume can be set according
to the type of urinal).
• High-frequency mode (exclusive to DELABIE):
- short rinse after each user
- additional rinse at the end of the busy period.
• Hygienic duty flush every 24 hours after last use: prevents vacuums.
• Compatible with rain water.
• Flow rate 0.15 L/sec. at 3 bar, can be adjusted.
• Integrated stopcock and flow rate adjuster.
• One-piece chrome-plated metal body.
• M½" connection.
• Suitable for people with reduced mobility.
• 30-year warranty.
Ideal for replacing old installations:
Can easily be installed where there was previously a time flow urinal valve.
1/2"
15
125 1/2"
30 45
35 1/2" 35 1/2"
54 URINALS
479410 479411

20
1/2" 1/2" 1/2"

19
19
50
50
Ø 16
325 Ø 16 350 30 325 20
30
Ø 16
Ø 35 Ø 35
50
3/8"
479412 479413 479416

TEMPOMATIC 4 exposed valve
Valve only (M½" outlet, 35mm gap from wall)
In-line 479410
Angled 479411
Full kit (angled supply)
For standard urinal:
50mm gap from wall 479412
For DELABIE FINO urinal 479413
For DELABIE DELTA urinal 479414
For non-standard urinal: 479416
30mm gap from wall

Urinals 169
