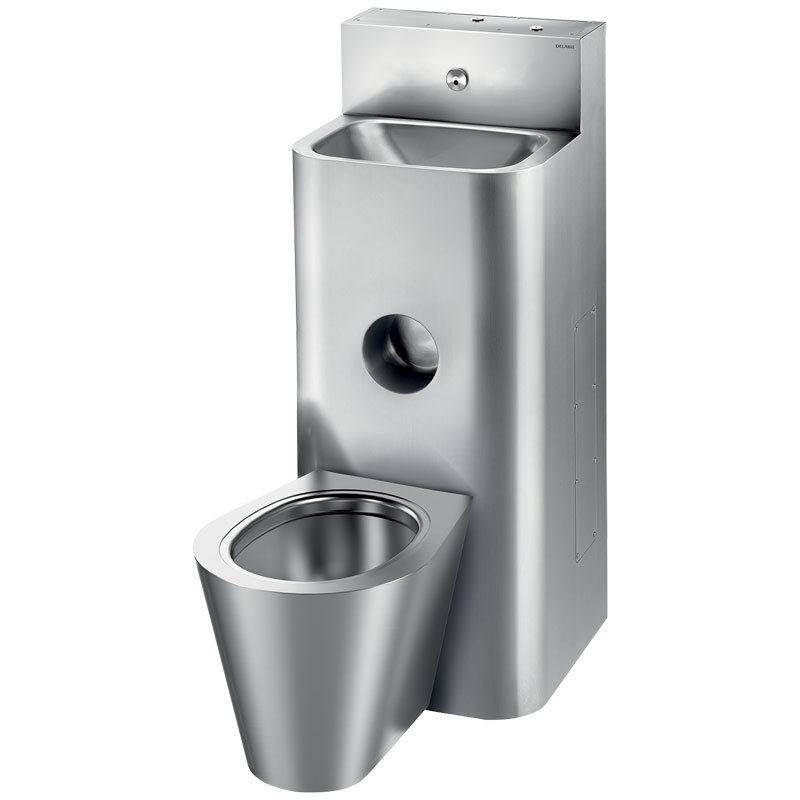

KOMPACT washbasin and floor-standing WC combination
Ref. 162800
Polished satin 304 stainless steel - Wall-mounted - floor WC centre
Polished satin 304 stainless steel - Wall-mounted - floor WC centre
DESCRIPTION
KOMPACT washbasin and floor-standing WC combination
Ref. 162800Washbasin combination unit with cistern, floor-standing WC pan in centre with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC fitted with 6-litre cistern.
Water inlets: washbasin M½", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC fitted with 6-litre cistern.
Water inlets: washbasin M½", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for the secure sector

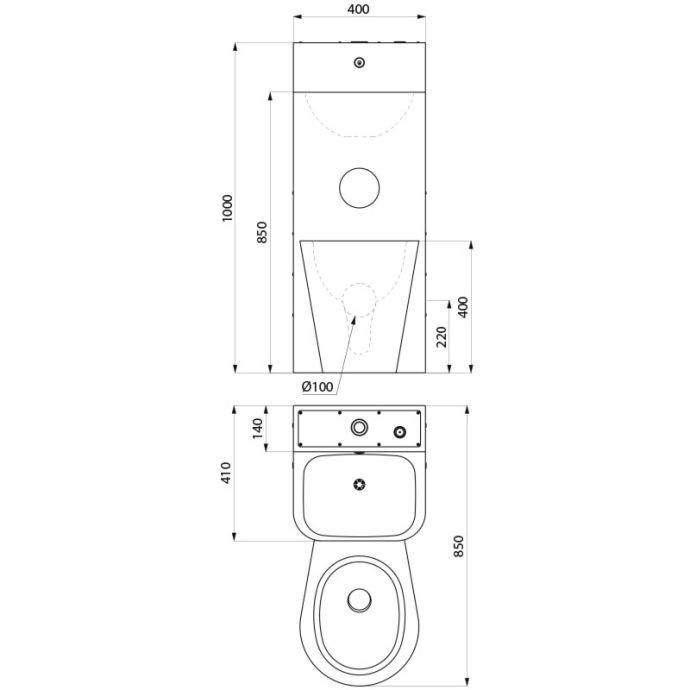

TECHNICAL CHARACTERISTICS
KOMPACT washbasin and floor-standing WC combination
Ref. 162800| Height | 1000mm |
| Length | 400mm |
| Width | 850mm |
| Thickness | 2mm |
| Finish | Polished satin 304 stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 162300 | Wall-mounted WC - WC pan on the right side | ||
|---|---|---|---|
| 162400 | Wall-mounted WC - WC pan on the left side | ||
| 162500 | Wall-mounted WC - centered WC pan | ||
| 162600 | Floor-standing WC - WC pan on the right side | ||
| 162700 | Floor-standing WC - WC pan on the left side |
Associated products
KOMPACT washbasin and floor-standing WC combination
Satin finish 304 stainless steel, Wall mount, Floor mount central WC
Ref. 160800

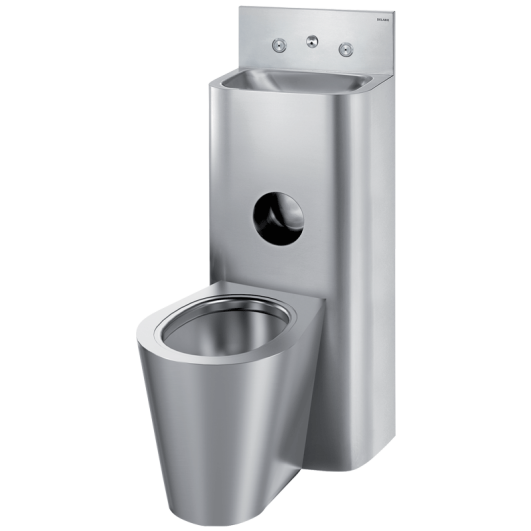

KOMPACT TC washbasin and floor-standing WC combination
