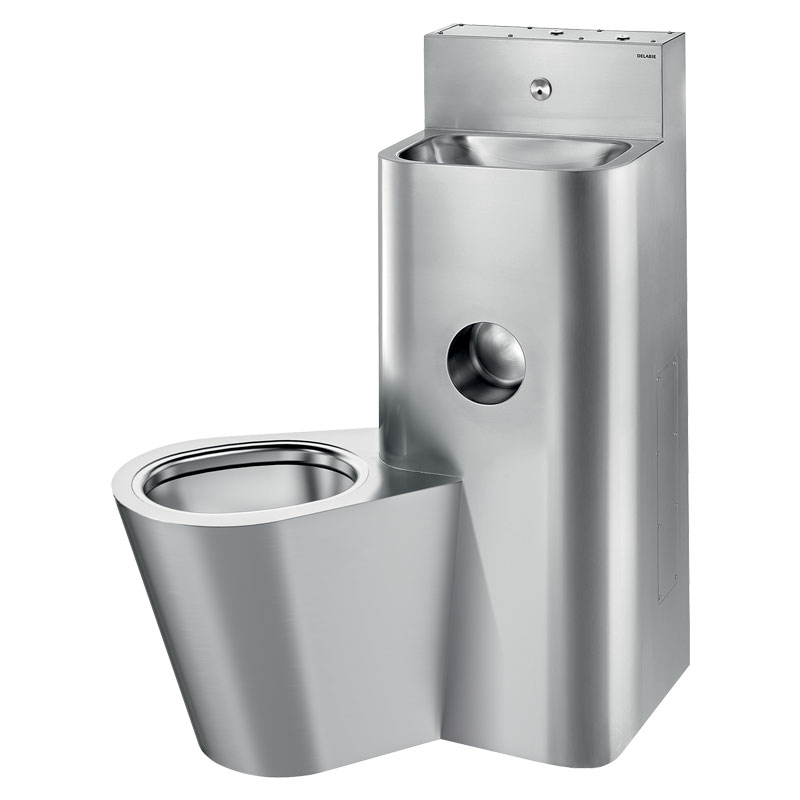

KOMPACT washbasin and floor-standing WC combination
Ref. 162700
Polished satin 304 stainless steel - Wall-mounted - floor WC left
Polished satin 304 stainless steel - Wall-mounted - floor WC left
DESCRIPTION
KOMPACT washbasin and floor-standing WC combination
Ref. 162700Washbasin combination unit with cistern, floor-standing WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC fitted with 6-litre cistern.
Water inlets: washbasin M½", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC fitted with 6-litre cistern.
Water inlets: washbasin M½", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for the secure sector

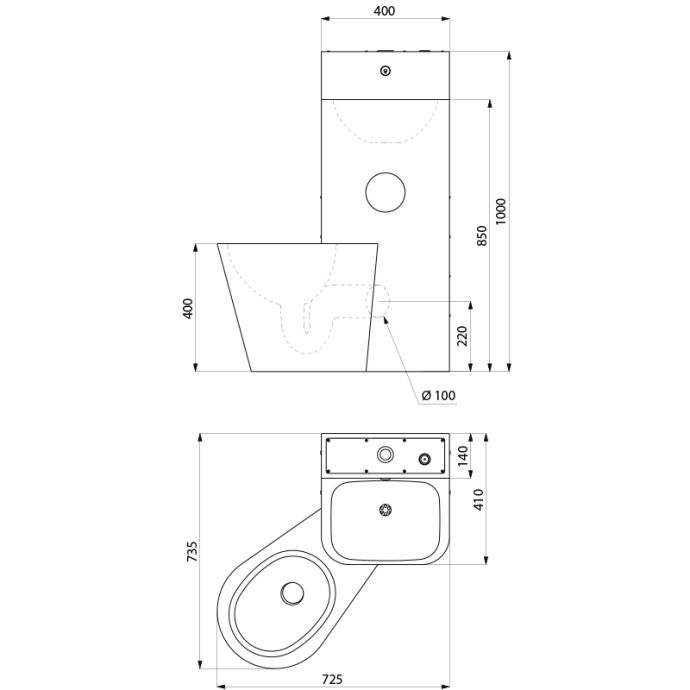

TECHNICAL CHARACTERISTICS
KOMPACT washbasin and floor-standing WC combination
Ref. 162700Height | 1000mm |
Length | 725mm |
Width | 735mm |
Thickness | 2mm |
Finish | Polished satin 304 stainless steel |
Certificates | |
Warranty |
VARIANTS
162300 | Wall-mounted WC - WC pan on the right side | ||
---|---|---|---|
162400 | Wall-mounted WC - WC pan on the left side | ||
162500 | Wall-mounted WC - centered WC pan | ||

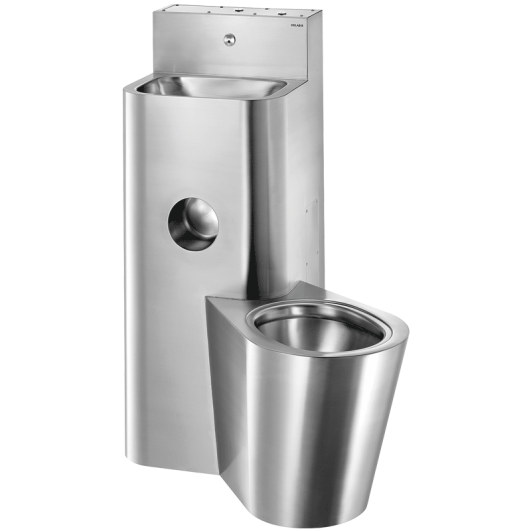

162600 | Floor-standing WC - WC pan on the right side | ||
162800 | Floor-standing WC - centered WC pan |
VARIANTS
162300 | Wall-mounted WC - WC pan on the right side | ||
---|---|---|---|
162400 | Wall-mounted WC - WC pan on the left side | ||
162500 | Wall-mounted WC - centered WC pan | ||
162600 | Floor-standing WC - WC pan on the right side | ||
162800 | Floor-standing WC - centered WC pan |
