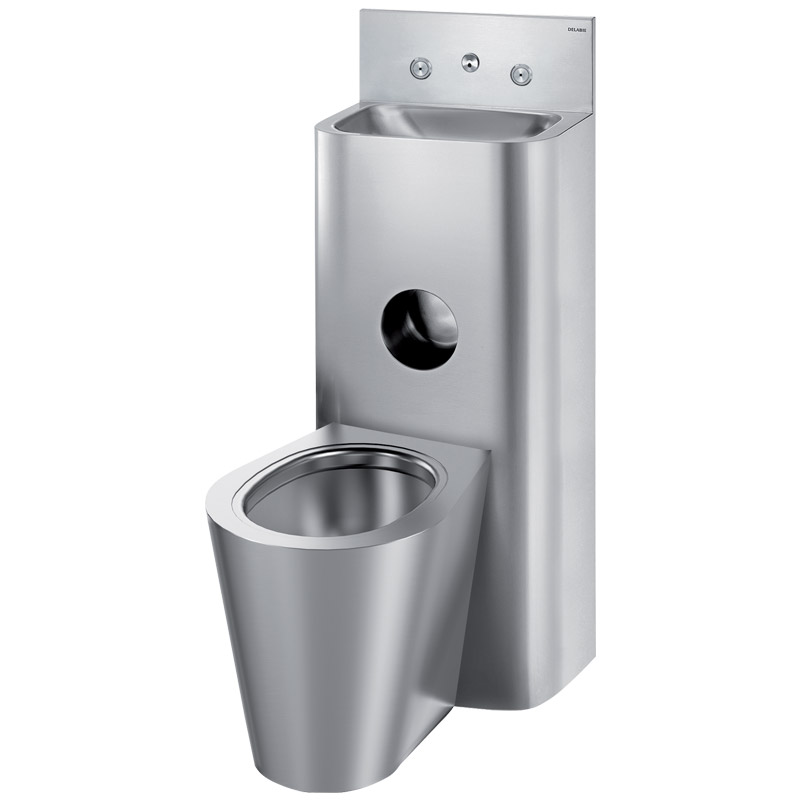

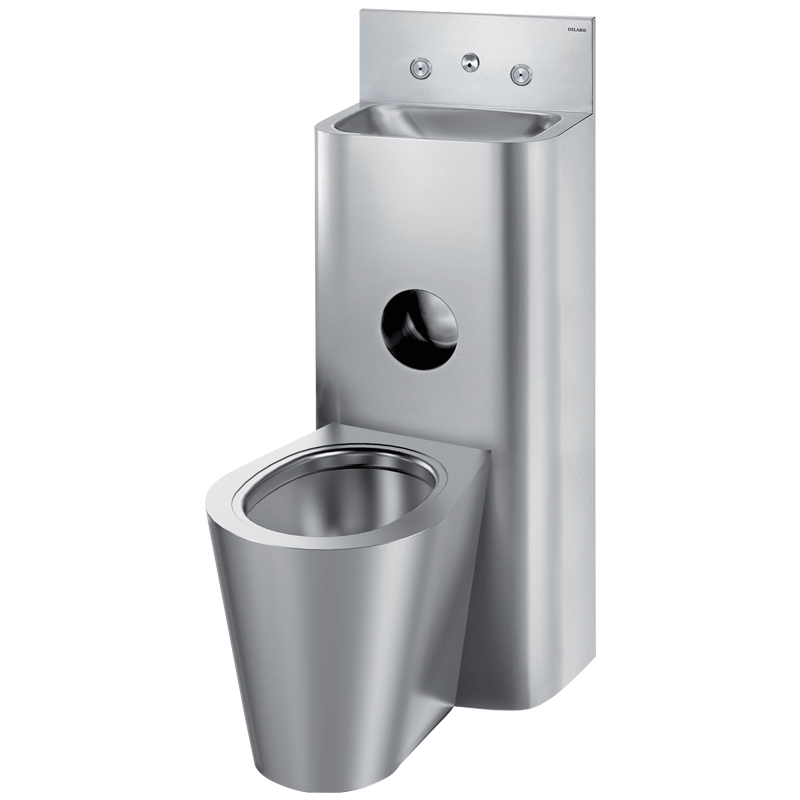

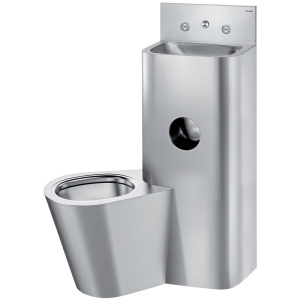

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166800
Satin finish 304 stainless steel, cross wall, Floor mount central WC
Satin finish 304 stainless steel, cross wall, Floor mount central WC
DESCRIPTION
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166800Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.

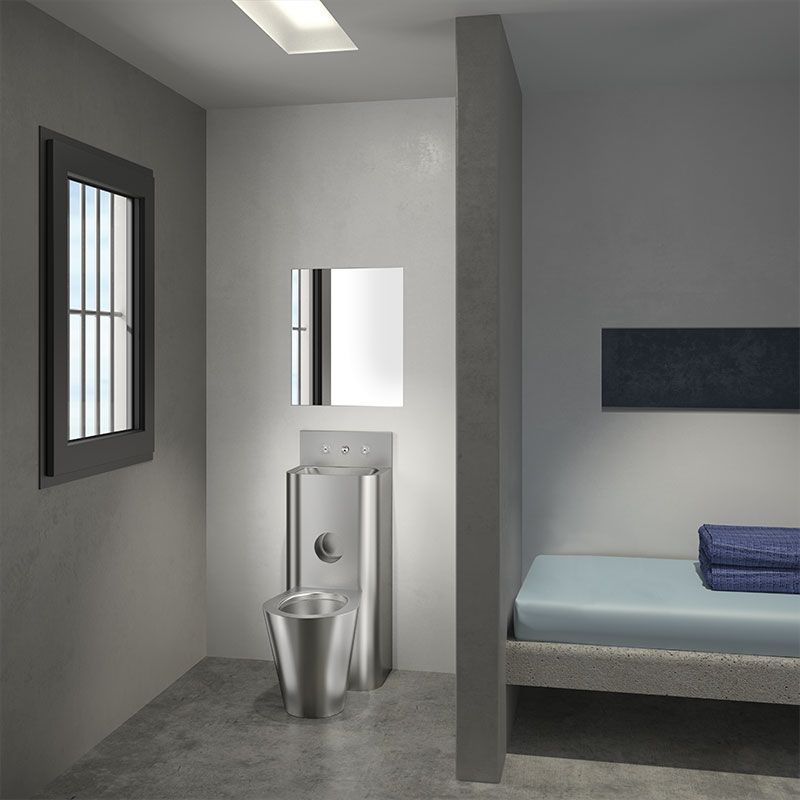

Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130008]
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130008]
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for secure sector

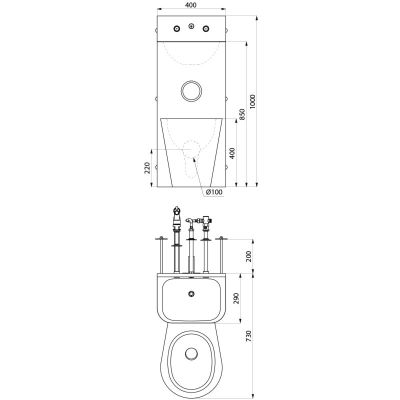

TECHNICAL CHARACTERISTICS
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166800| Height | 1000mm |
| Length | 730mm |
| Width | 400mm |
| Thickness | 2mm |
| Finish | 304 polished satin stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 166300 | Wall-mounted WC - WC pan on the right side | ||
|---|---|---|---|
| 166400 | Wall-mounted WC - WC pan on the left side | ||
| 166500 | Wall-mounted WC - centered WC pan | ||
| 166600 | Floor-standing WC - WC pan on the right side | ||
| 166700 | Floor-standing WC - WC pan on the left side |
