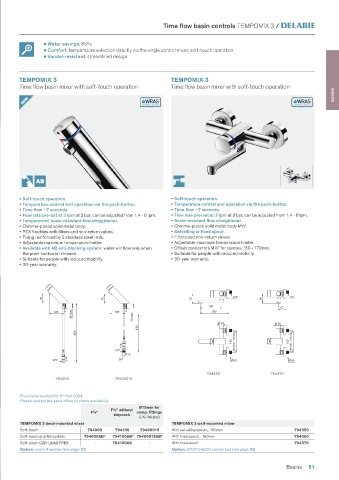

Time flow basin controls TEMPOMIX 3 /


                     •  Water savings: 85%
                     •  Comfort: temperature selection directly via the single control mixer, soft-touch operation
                     •  Vandal-resistant: streamlined design




            TEMPOMIX 3                                           TEMPOMIX 3
            Time flow basin mixer with soft-touch operation       Time flow basin mixer with soft-touch operation

             NEW                                                                                                          BASINS




















            • Soft-touch operation.                              • Soft-touch operation.
            • Temperature control and operation via the push-button.  • Temperature control and operation via the push-button.
            • Time flow ~7 seconds.                               • Time flow ~7 seconds.
            • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.  • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
            • Tamperproof, scale-resistant flow straightener.     • Scale-resistant flow straightener.
            • Chrome-plated solid metal body.                    • Chrome-plated solid metal body M½".
            • PEX flexibles with filters and non-return valves.    • Swivelling or fixed spout.
            • Fixing reinforced by 2 stainless steel rods.       • Filters and non-return valves.
            • Adjustable maximum temperature limiter.            • Adjustable maximum temperature limiter.
            • Available with AB anti-blocking system: water will flow only when    • Offset connectors M½" for centres 130 - 170mm.
             the push-button is released.                        • Suitable for people with reduced mobility.
            • Suitable for people with reduced mobility.         • 30-year warranty.
            • 30-year warranty.






                    70                    70                             70             1/2"     65         1/2"
                                                                              150                       55
                              40 max                30 max
                        105                  105                                200
                                                                                  Ø 30                Ø 30
                                                      430
                                400
                                                                                       150  130 min - 170 max  150  130 min - 170 max
                                             1/2"
                                                 Ø15
                        3/8"                   30°                                    Ø 65                 Ø 65

                                                                              794350                794370
                         794000               79400015


            Provisional availability 2  half 2024.
                           nd
            Please contact the sales office to check availability.
                                                      Ø15mm for
                                            F⅜" without
                                     F⅜"             comp. fittings
                                             stopcock
                                                      (UK/Ireland)
            TEMPOMIX 3 deck-mounted mixer                         TEMPOMIX 3 wall-mounted mixer
            Soft-touch              794000    794100  79400015    With swivelling spout L. 150mm             794350
            Soft-touch and AB system  794000AB*    794100AB* 79400015AB*  With fixed spout L. 150mm           794360
            Soft-touch DZR LEAD FREE  -      794100AS     -       With fixed spout                            794370
            Option: comfort aerator (see page 68)                 Option: STOP/CHECK connectors (see page 68)
