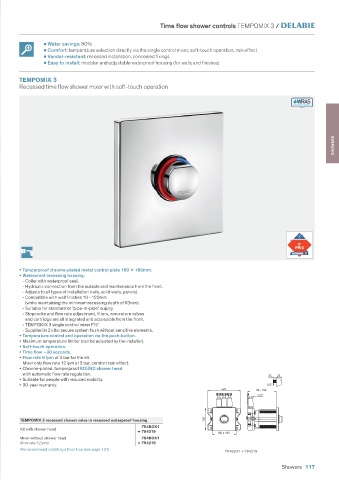

Page 119 - Water_Controls_for_Public-Commercial

Time flow shower controls TEMPOMIX 3 /

• Water savings: 80%
• Comfort: temperature selection directly via the single control mixer, soft-touch operation, rain effect
• Vandal-resistant: recessed installation, concealed fixings
• Easy to install: modular and adjustable waterproof housing (for walls and finishes)

TEMPOMIX 3
Recessed time flow shower mixer with soft-touch operation

SHOWERS

• Tamperproof chrome-plated metal control plate 160 160mm.
• Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the outside and maintenance from the front.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm
(while maintaining the minimum recessing depth of 93mm).
- Suitable for standard or "pipe-in-pipe" supply.
- Stopcocks and flow rate adjustment, filters, non-return valves
and cartridge are all integrated and accessible from the front.
- TEMPOMIX 3 single control mixer F½".
- Supplied in 2 kits: secure system flush without sensitive elements.
• Temperature control and operation via the push-button.
• Maximum temperature limiter (can be adjusted by the installer).
• Soft-touch operation.
• Time flow ~30 seconds.
• Flow rate 6 lpm at 3 bar for the kit.
Mixer only flow rate 12 lpm at 3 bar, comfort rain effect.
• Chrome-plated, tamperproof ROUND shower head
with automatic flow rate regulation. 22 35
• Suitable for people with reduced mobility.
• 30-year warranty. 1/2"
225 93 - 190
1/2"

TEMPOMIX 3 recessed shower valve in recessed waterproof housing 150
794BOX1
Kit with shower head
+ 794219 160 x 160
Mixer without shower head 794BOX1
(flow rate 12 lpm) + 794218
We recommend installing a floor trap (see page 131)
794BOX1 + 794219
Showers 117
