DOC M Space guide showers - changing rooms /

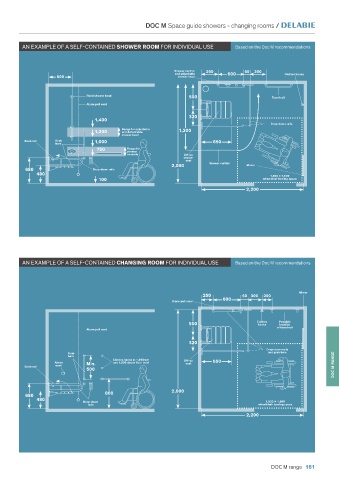

AN EXAMPLE OF A SELF CONTAINED SHOWER ROOM FOR INDIVIDUAL USE Based on the Doc M recommendations

Shower control 250 50 300
and adjustable 600 Clothes hooks
500 shower head

Fixed shower head 500 Towel rail
Alarm pull cord

320
1,400
Drop-down rails
Range for adjustable
1,200 and detachable 1,200
shower head
Backrest Grab 1,000 650
bars
750 Range for
shower
controls Lift-up
shower
seat
Shower curtain
2,000 Mirror
680 Drop-down rails
480
1,500 1,500
100 wheelchair turning space
2,200

AN EXAMPLE OF A SELF CONTAINED CHANGING ROOM FOR INDIVIDUAL USE Based on the Doc M recommendations

Mirror
250 50 300 200
600
Alarm pull cord

500 Clothes Possible
hooks
location
of towel rail
Alarm pull cord
320
Drop-down rails
Grab and grab bars
bars
Clothes hooks at 1,400mm Lift-up 650
Alarm Min. and 1,050 above floor level seat
Backrest reset DOC M RANGE
500

800 2,000
680
480
Drop-down 1,500 1,500
rails wheelchair turning space
2,200
