Page 159 - Accessibility-Hygienic-Accessories

DOC M Products /

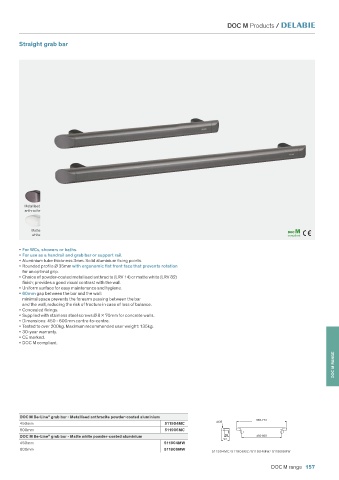

Straight grab bar

Metallised
anthracite

Matte DOC M
white compliant

• For WCs, showers or baths.
• For use as a handrail and grab bar or support rail.
• Aluminium tube thickness 3mm. Solid aluminium fixing points.
• Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation
for an optimal grip.
• Choice of powder-coated metallised anthracite (LRV 14) or matte white (LRV 82)
finish; provides a good visual contrast with the wall.
• Uniform surface for easy maintenance and hygiene.
• 60mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar
and the wall, reducing the risk of fracture in case of loss of balance.
• Concealed fixings.
• Supplied with stainless steel screws Ø 8 70mm for concrete walls.
• Dimensions: 450 - 600mm centre-to-centre.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked.
• DOC M compliant.

DOC M RANGE

DOC M Be-Line grab bar - Metallised anthracite powder-coated aluminium
®
563-713
450mm 511904MC Ø 35
600mm 511906MC
®
DOC M Be-Line grab bar - Matte white powder-coated aluminium 60 450-600
93
450mm 511904MW
600mm 511906MW
511904MC/511906MC/511904MW/ 511906MW
DOC M range 157
