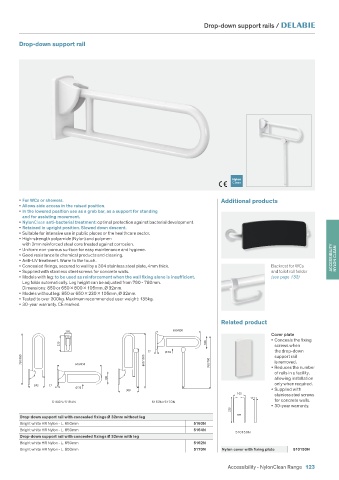

Drop-down support rails /

Drop-down support rail

• For WCs or showers. Additional products
• Allows side access in the raised position.
• In the lowered position use as a grab bar, as a support for standing
and for assisting movement.
• NylonClean anti-bacterial treatment: optimal protection against bacterial development.
• Retained in upright position. Slowed down descent.
• Suitable for intensive use in public places or the healthcare sector.
• High-strength polyamide (Nylon) and polymer:
with 2mm reinforced steel core treated against corrosion.
• Uniform non-porous surface for easy maintenance and hygiene.
• Good resistance to chemical products and cleaning. ACCESSIBILITY
• Anti-UV treatment. Warm to the touch. NYLON CLEAN
• Concealed fixings, secured to wall by a 304 stainless steel plate, 4mm thick. Backrest for WCs
• Supplied with stainless steel screws for concrete walls. and toilet roll holder
• Models with leg: to be used as reinforcement when the wall fixing alone is insufficient. (see page 133)
Leg folds automatically. Leg height can be adjusted from 760 - 780mm.
Dimensions: 850 or 650 800 105mm, Ø 32mm.
• Models without leg: 850 or 650 230 105mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty. CE marked.

Related product
105 650/850
Cover plate
• Conceals the fixing
230 180 screws when
17 Ø 32 the drop-down
750/950 650/850 800/1000 760/780 support rail
is removed.
• Reduces the number
of rails in a facility,
180 allowing installation
only when required.
242 17
Ø 32 • Supplied with
300
105 stainless steel screws
17
5160N/5164N 5162N/5170N for concrete walls.
• 30-year warranty.
230
Drop-down support rail with concealed fixings Ø 32mm without leg
Bright white HR Nylon - L. 650mm 5160N
Bright white HR Nylon - L. 850mm 5164N
510150N
Drop-down support rail with concealed fixings Ø 32mm with leg
Bright white HR Nylon - L. 650mm 5162N
Bright white HR Nylon - L. 850mm 5170N Nylon cover with fixing plate 510150N
