Page 123 - Accessibility-Hygienic-Accessories

Grab bars /

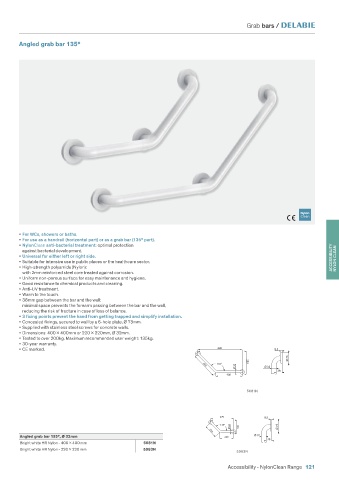

Angled grab bar 135°

• For WCs, showers or baths.
• For use as a handrail (horizontal part) or as a grab bar (135° part).
• NylonClean anti-bacterial treatment: optimal protection
against bacterial development.
• Universal for either left or right side. ACCESSIBILITY NYLON CLEAN
• Suitable for intensive use in public places or the healthcare sector.
• High-strength polyamide (Nylon):
with 2mm reinforced steel core treated against corrosion.
• Uniform non-porous surface for easy maintenance and hygiene.
• Good resistance to chemical products and cleaning.
• Anti-UV treatment.
• Warm to the touch.
• 38mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar and the wall,
reducing the risk of fracture in case of loss of balance.
• 3 fixing points prevent the hand from getting trapped and simplify installation.
• Concealed fixings, secured to wall by a 6-hole plate, Ø 73mm.
• Supplied with stainless steel screws for concrete walls.
• Dimensions: 400 400mm or 220 220mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked. 680 8,5
Ø 73
135° 283
Ø 32 Ø 32
400
38
400
5081N

375 8,5
Ø 32 156 Ø 73
135°
220
Angled grab bar 135°, Ø 32mm 220 Ø 32
38
Bright white HR Nylon - 400 400 mm 5081N
Bright white HR Nylon - 220 220 mm 5083N
5083N
Accessibility - NylonClean Range 121
