Mirror Soap Water Air

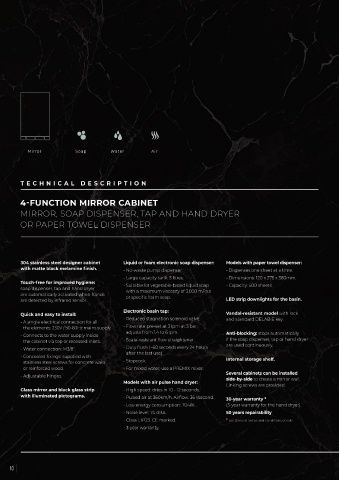

T E C H N I C A L D E S C R I P T I O N

4 FUNCTION MIRROR CABINET
MIRROR, SOAP DISPENSER, TAP AND HAND DRYER
OR PAPER TOWEL DISPENSER

304 stainless steel designer cabinet Liquid or foam electronic soap dispenser: Models with paper towel dispenser: 4-in-1 mirror cabinets
with matte black melamine finish. - No-waste pump dispenser. - Dispenses one sheet at a time.
510203 L. 600mm - Mirror, soap, water, hand dryer
- Large capacity tank: 5 litres. - Dimensions: 120 x 275 x 360mm.
Touch-free for improved hygiene: - Suitable for vegetable-based liquid soap - Capacity: 500 sheets. 510204 L. 800mm - Mirror, soap, water, hand dryer
soap dispenser, tap and hand dryer with a maximum viscosity of 3,000 mPa.s 510205 L. 600mm - Mirror, soap, water, paper towel dispenser
are automatically activated when hands or specific foam soap. 510206 L. 800mm - Mirror, soap, water, paper towel dispenser
are detected by infrared sensor. LED strip downlights for the basin.
3-in-1 mirror cabinets
Electronic basin tap:
Quick and easy to install: Vandal-resistant model with lock
- Reduced stagnation solenoid valve. and standard DELABIE key. 510207 L. 600mm - Mirror, soap, hand dryer
- A single electrical connection for all
the elements: 230V / 50-60Hz mains supply. - Flow rate pre-set at 3 lpm at 3 bar, 510208 L. 800mm - Mirror, soap, hand dryer
adjusts from 1.4 to 6 lpm. Anti-blocking: stops automatically
- Connects to the water supply inside 510209 L. 600mm - Mirror, soap, paper towel dispenser
the cabinet via top or recessed inlets. - Scale-resistant flow straightener. if the soap dispenser, tap or hand dryer 510210 L. 800mm - Mirror, soap, paper towel dispenser
- Water connection: M3/8". - Duty flush (~60 seconds every 24 hours are used continuously.
after the last use). Units for installation behind a mirror
- Concealed fixings: supplied with Internal storage shelf.
stainless steel screws for concrete walls - Stopcock. 510203I 3-in-1 unit: soap, water, hand dryer
or reinforced wood. - For mixed water, use a PREMIX mixer.
Several cabinets can be installed 510205I 3-in-1 unit: soap, water, paper towel dispenser
- Adjustable hinges.
side-by-side to create a mirror wall. 510207I 2-in-1 unit: soap, hand dryer
Models with air pulse hand dryer:
Linking screws are provided. 510203SD Soap dispenser
Glass mirror and black glass strip - High speed: dries in 10 - 12 seconds.
with illuminated pictograms. - Pulsed air at 360km/h. Airflow: 36 l/second. 30-year warranty * Thermostatic mixing valve for models with tap
- Low energy consumption: 704W. (3-year warranty for the hand dryer).
- Noise level: 74 dBA. 50 years repairability 732012 PREMIX NANO thermostatic mixing valve FFM3/8"
- Class I, IP23. CE marked. * see General terms and conditions of sale 732115MEC PREMIX NANO thermostatic mixing valve F1/2" ∅ 15mm
+ 808012 for compression fittings + connector
- 3-year warranty.
