TEMPOMIX 2 time flow mixer

Ref. 700102
See variants See variants
TEMPOMIX 2 time flow mixer

Presentation

DESCRIPTION

TEMPOMIX 2 time flow mixer

Ref. 700102

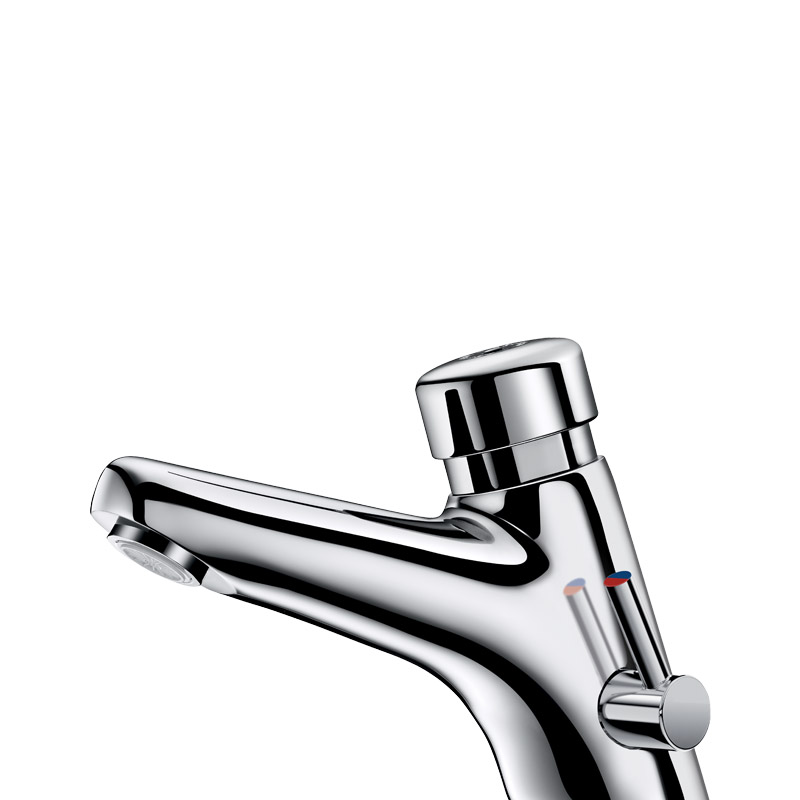

Deck-mounted time flow basin mixer:
Time flow ~15 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
30-year warranty.

ADVANTAGES

Anti-vandalisme

Chrome-plated brass body

Economie d'eau

85% water savings

Maintenance aisée - Installation aisée

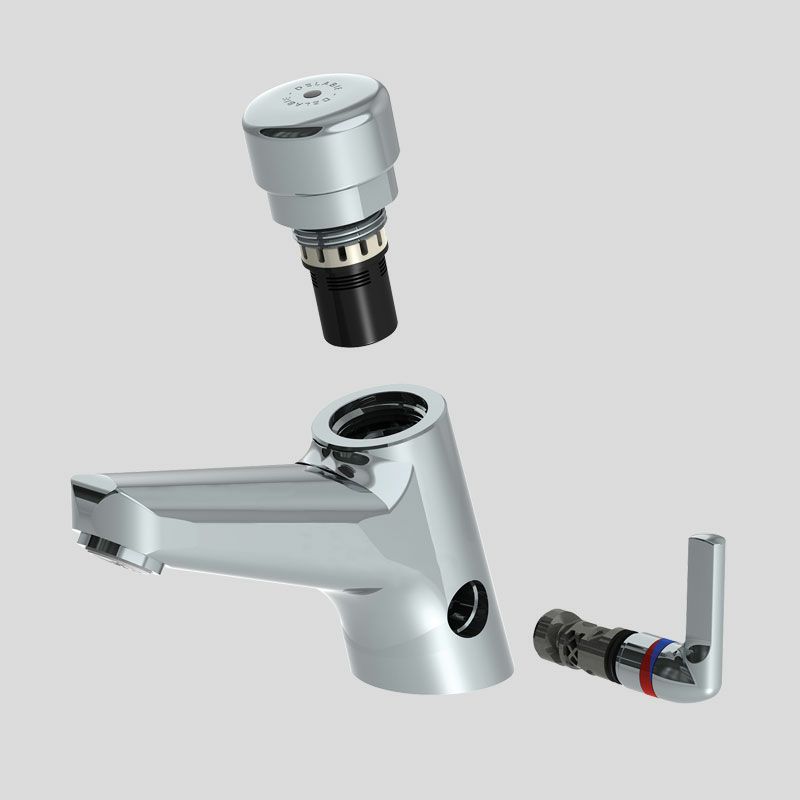

Maintenance from front without removing the mixer

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 2 time flow mixer

Ref. 700102

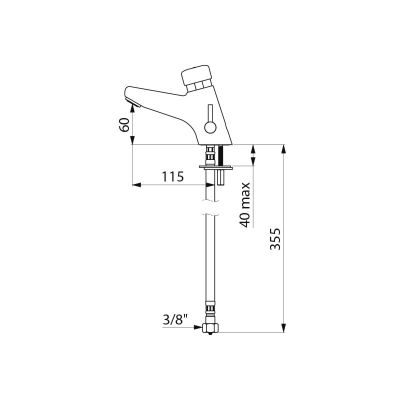

Connector F3/8"
Technology Time flow
Drop height 60mm
Spout length 115mm
Flow rate 3 lpm
Certificates ACS Logo PZH
Warranty 30-Year
TEMPOMIX 2 time flow mixer
Ref. 700102

Downloads

DOWNLOADS

TEMPOMIX 2 time flow mixer

Ref. 700102

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

700000 With stopcocks
700001 With stopcocks - AB system
700100 Without stopcock
700101 Without stopcock - AB system
