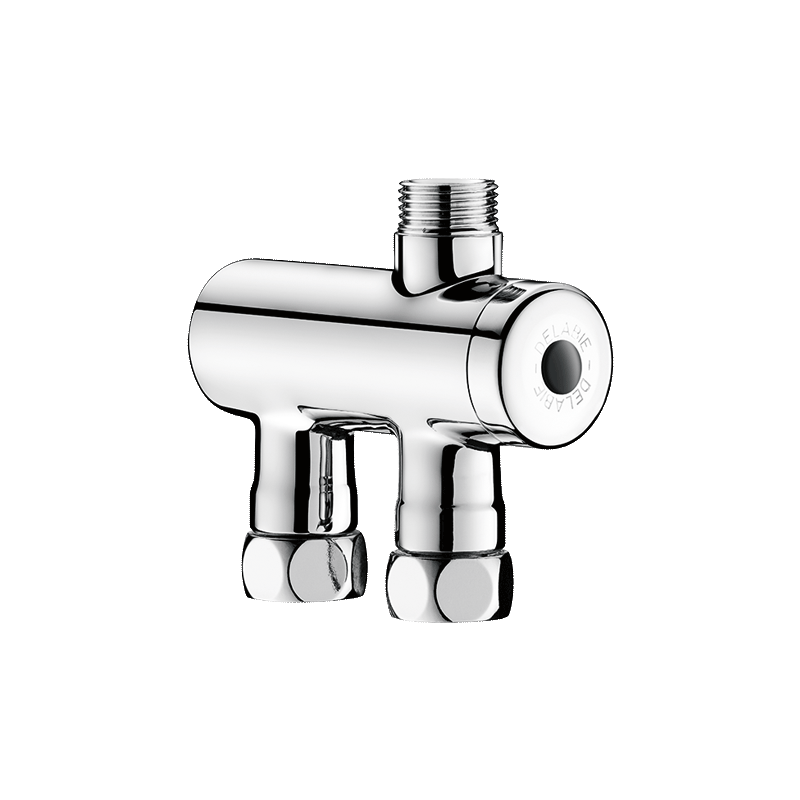

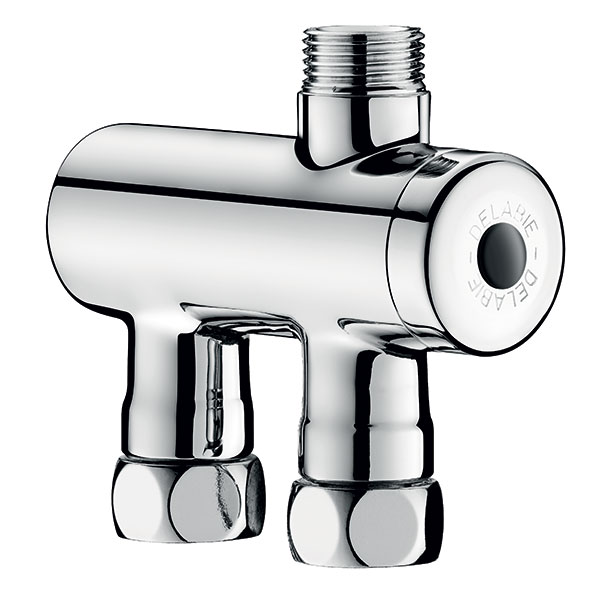

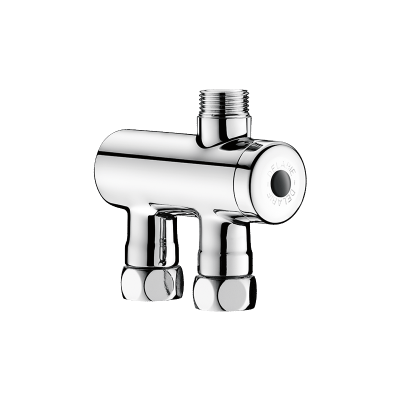

PREMIX NANO thermostatic mixing valve

Ref. 732016
For mixed water from 34 - 60°C
PREMIX NANO thermostatic mixing valve

Presentation

DESCRIPTION

PREMIX NANO thermostatic mixing valve

Ref. 732016
Thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of hot or cold water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Chrome-plated body, inlets F3/8" and outlet M3/8".
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if hot or cold water fails

Confort - Ergonomie - Déclenchement souple

Temperature stability

Maintenance aisée - Installation aisée

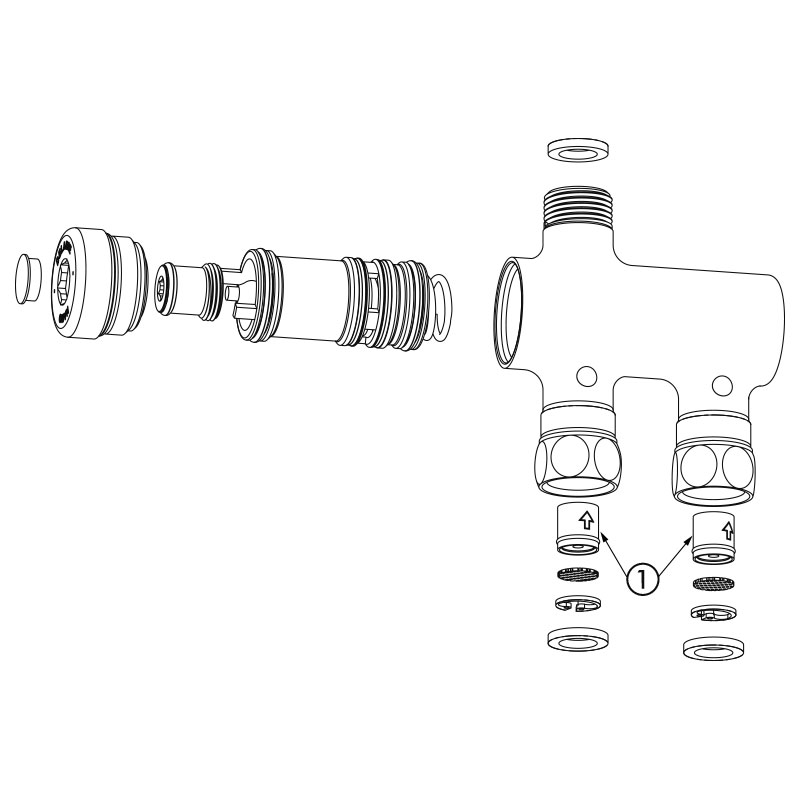

Accessible filters and non-return valves

Endurance - Fiabilité

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX NANO thermostatic mixing valve

Ref. 732016

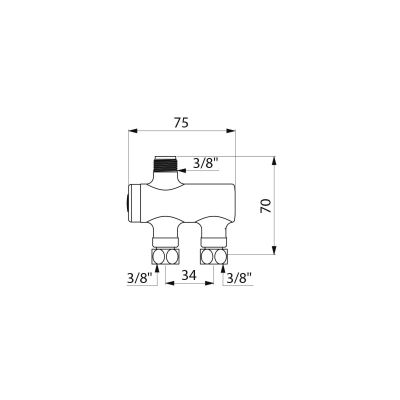

Connector 3/8"
Technology Thermostatic
Height 70mm
Length 75mm
Finish chrome-plated
Certificates ACS Logo Belgaqua SINTEF Logo PZH
Warranty 30-Year
PREMIX NANO thermostatic mixing valve
Ref. 732016

Downloads

DOWNLOADS

PREMIX NANO thermostatic mixing valve

Ref. 732016

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

732012 Nickel-plated body - Ø 15mm compression fittings
732115 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732116 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732216 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"

Associated products

VARIANTS

732012 Nickel-plated body - Ø 15mm compression fittings
732115 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732116 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732216 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
